Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries |
Voltage: |
48V |
Capacity: |
100Ah |
Weight: |
41kg |
Dimension((L*W*H): |
550*305*260mm |
Case: |
Metal Case |
Type: |
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries |
Voltage: |
48V |
Capacity: |
100Ah |
Weight: |
41kg |
Dimension((L*W*H): |
550*305*260mm |
Case: |
Metal Case |

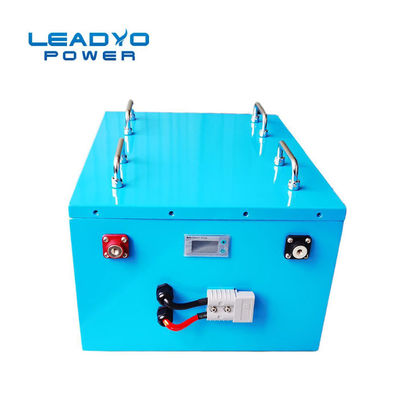

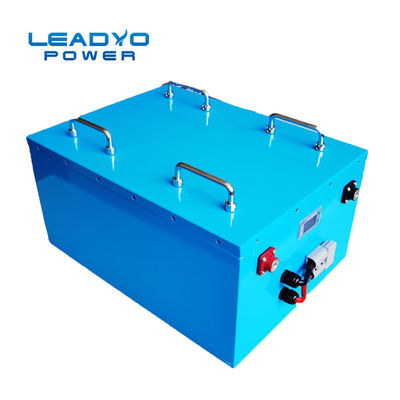

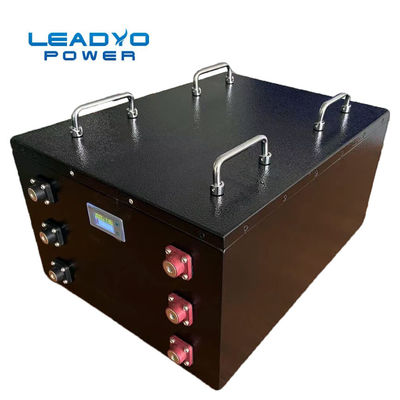

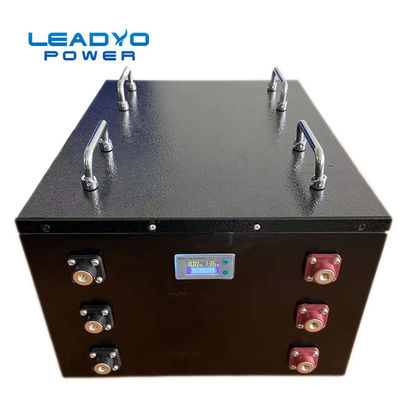

Golf cart 48V 100Ah lithium ion batteries metal case rechargeable 48 volt deep cycle lifepo4 battery with LCD
Lithium Iron Phosphate Battery 48V 100Ah
Nominal Voltage 51.2V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 5120 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Can with Bluetooth/RS485/RS232/SMbus/I2C communuctaion
Lithium Iron LFP 48V 100Ah 1200Wh Battery pack:
• Nominal Voltage: 51.2V
• Capacity:100A, also 50ah,105ah,150 and 200ah available.
• Continuous discharge current: 100/150/200A
• Size: L460*W334*H247mm(48v 100ah)
• Bluetooth,LCD display or with RS485/CAN communication with your Golf Carts.
• Built-in Safety System.
• Simply drop in as a direct replacement for lead acid battery.
Contact us to custom your own golf cart battery packs ,NO MOQ.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 41kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 550*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 300A /10s | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
