Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries |
Voltage: |
12.8V |
Capacity: |
200Ah |
Energy: |
2560Wh |
Weight: |
26kg |
Dimension((L*W*H): |
L520*W232*H217mm |
Case: |
ABS |
Waterproof: |
IP66 |
Function: |
Smart Bluetooth |
Application: |
RV, Camping, Marine.Solar Energy Storage Ect... |
Type: |
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries |
Voltage: |
12.8V |
Capacity: |
200Ah |
Energy: |
2560Wh |
Weight: |
26kg |
Dimension((L*W*H): |
L520*W232*H217mm |
Case: |
ABS |
Waterproof: |
IP66 |
Function: |
Smart Bluetooth |
Application: |
RV, Camping, Marine.Solar Energy Storage Ect... |

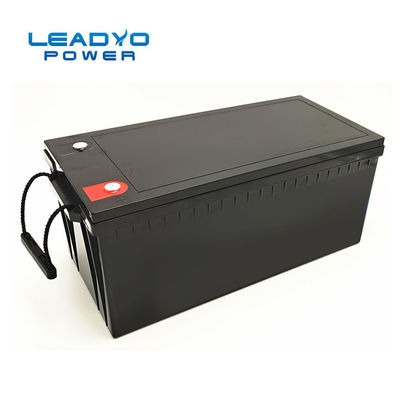

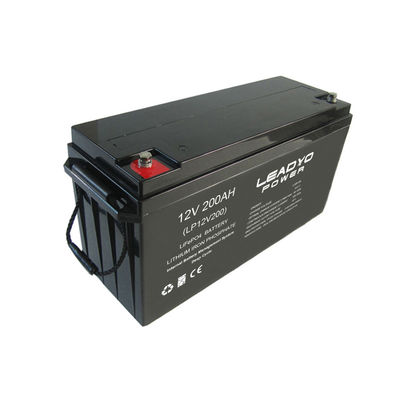

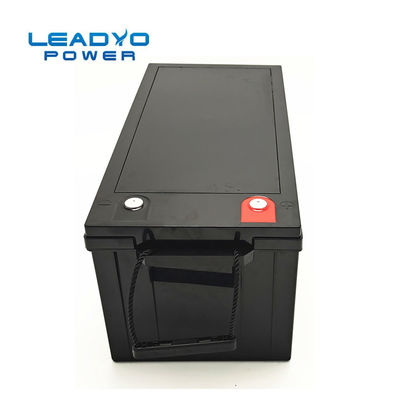

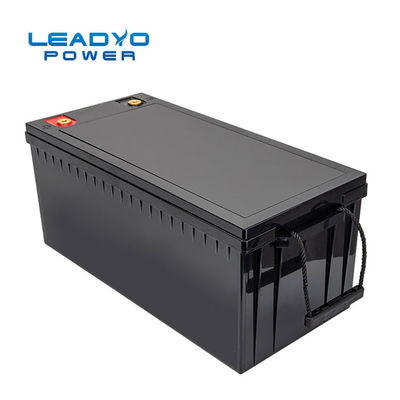

Rechargeable IP66 Lithium ion RV Battery 12V 200Ah LiFePO4 Deep Cycle Batteries with Smart App
Lithium Iron Phosphate Battery 12V 200Ah
Nominal Voltage 12.8V
Nominal Capacity 200 Ah
Capacity @ 40A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
12V 200Ah LiFePO4 batteries often be used for the RV application.
Feature:
12V 200Ah LiFePO4 Smart Batteries
Continuous discharge current:150A/200A,peak discharge current:500A

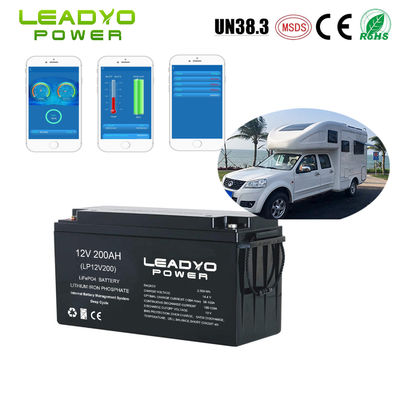

Bluetooth App to monitor real-time battery data.
Custom-made BMS With full over protection ,balancing function and short circuit protection
Charged by solar energy,used to run refrigerators, lamps, etc.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight |
26kg |
|
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 520*267*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 300A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
