Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V150
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries |
Voltage: |
12.8V |
Capacity: |
150Ah |
Nominal Energy: |
1920Wh |
Weight: |
20kg |
Dimension((L*W*H): |
330*170*210/480*170*240mm |
Function: |
Blutooth |
Custom: |
Support |
Bluetooth App With Private Logo: |
Support |
Type: |
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries |
Voltage: |
12.8V |
Capacity: |
150Ah |
Nominal Energy: |
1920Wh |
Weight: |
20kg |
Dimension((L*W*H): |
330*170*210/480*170*240mm |
Function: |
Blutooth |
Custom: |
Support |
Bluetooth App With Private Logo: |
Support |

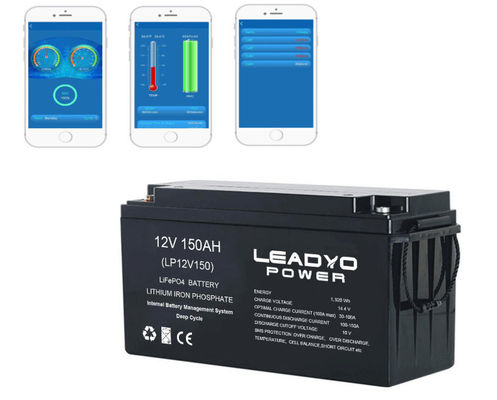

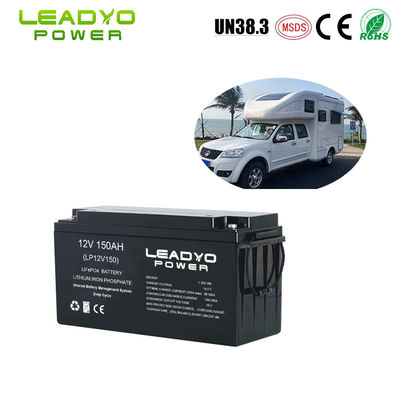

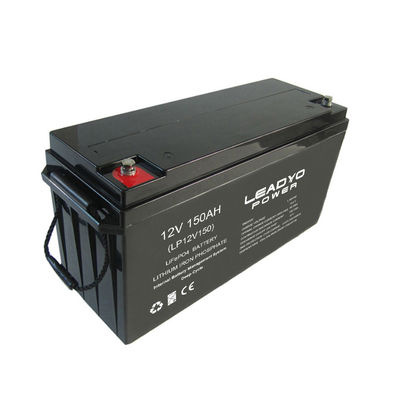

Lithium ion RV Battery 12v 150Ah LiFePO4 Deep Cycle Leisure Batteries for Camper with Bluetooth App
150 AH Lithium Iron Phosphate battery.
Dimension (mm) 330*170*210/480*170*240
Weight: 21.5kg
Product performance description
Over 5000 cycles.
Can be connected in Series up to 48V.
LiFePO4 material, safer than other lithium ion.
Inbuilt BMS for charge and discharge protection
Connect in Parallel for Larger Capacity.
Built-in Smart Battery Management System.
Low Temperature Charging (0℃) and Discharging Cut-off (-20℃)
High Temperature Charging (65℃) or Discharging Cut-off (65℃).
Over Charging or Discharging Protection.
Over Current & Short Circuit Protection.
Battery Cells Auto Balance.
Charge Voltage:14.6V
Max Charge Current: 100 A
Max Discharge Current: 120 A
IP Rating: IP65

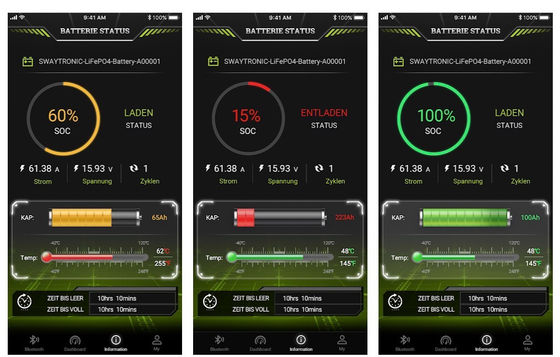

Bluetooth App can monitor battery status.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 150Ah | Weight | 21.5kg | |
| Nominal Energy | 1920Wh | Case Dimension(L*W*H) | 330*170*210/480*170*240mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 30A - 75A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
