| Brand Name: | LEADYO |
| Model Number: | LP12V80 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

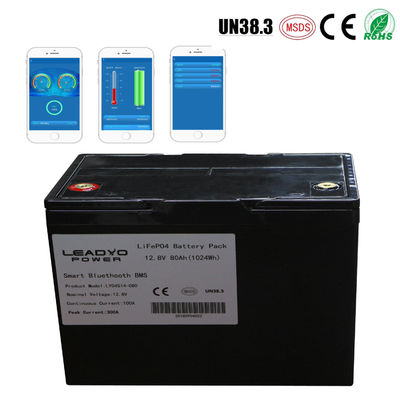

Smart Lithium ion Boat Battery 12v 80Ah Deep Cycle Lifepo4 Marine Batteries with Bluetooth app
Lithium Iron Phosphate Battery 12.8V 80Ah
Nominal Voltage 12.8V
Nominal Capacity 80 Ah
Capacity @ 16A 300 min
Energy 1024Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
The best portable battery for boat electronics, trolling motors, and outdoor portable power. This 18.15lb battery will allow you to go further with capacity similar to SLA batteries double in size at half the weight. This battery will allow you to wire up to 4 batteries together in series to achieve higher voltage. Higher capacity than many group size 31 batteries but in a group size 27!
SPECIFICATIONS:
Nominal Voltage: 12V
Nominal Capacity: 80Ah
Discharge Cut-Off: 10V
Charge Cut-Off: 14.65V
Charge Current: 100A Max
Cont. Discharge: 100A
Peak Discharge: 300A
Charge Temperature: 0℃ – 45℃
Discharge Temperature: -20℃ – 60℃
Charge Method: CC/CV
Life Cycle: 2000+
Terminal Type: M8 Bolts
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 80Ah | Weight | 10kg | |
| Nominal Energy | 1024Wh | Case Dimension(L*W*H) | 260*168*209mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| Peak current | 300A | Recommended Charge Current | 15A - 30A | |
| Discharge pulse current | 1200±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more starting lifepo4 battery?
Yes.
Crank Amps Optional : 200/400/600/800/1000/1200/1600CCA
Current Optional : 20Ah/40Ah/60Ah/80Ah/100Ah/120Ah
Group size optional : 24' 27' 31' 34'
6.How to get a quote?
Please contact with us sales6@leadyo-battery.com
|
|
