Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP48V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 10-25 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Type: | Lifepo4 Battery Pack | Voltage: | 48V |
|---|---|---|---|
| Capacity: | 100Ah | Weight: | 48kg |
| Dimension((L*W*H): | 472*334*247 | Case: | Metal Case |
| High Light: | Lithium Golf Cart Battery,48 Volt Golf Cart Batteries,48v Lifepo4 Golf Cart Battery | ||

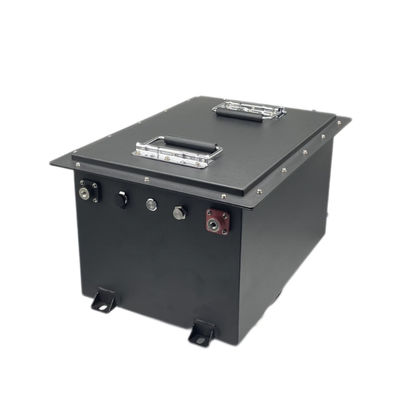

High Current Golf Cart Lifepo4 48V 100Ah 200A Battery Rechargeable Lithium ion Batteries with LCD
Lithium Iron Phosphate Battery 48V 100Ah
Nominal Voltage 51.2V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 5120 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Can with Bluetooth/RS485/RS232/SMbus/I2C communuctaion
Features:
1)Steel Case design, Sturdy and Durable.
2)Handle design, easy to carry and install.
3)LCD Display or Bluetooth App, convenient to check the battery capacity status.
4)Light weight 48V 100Ah around 40kg only.
5)With longer lifespan around 10 years.
6)Support OEM service.
7)Charger for optional.
8)Custom-made BMS With full over protection ,balancing function and short circuit protection.
The ideal drop-in replacement & upgrade your golf cart from AGM Batteries to LiFepo4 Battery.
Light in weight ,Small in size ,Play Longer ,10 Years Design life ,Zero maintenance,Plug and Play
Specification of 48V Lifepo4 Golf Cart Battery with LCD display :
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 48kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 472*334*247 | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 300A /10s | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |

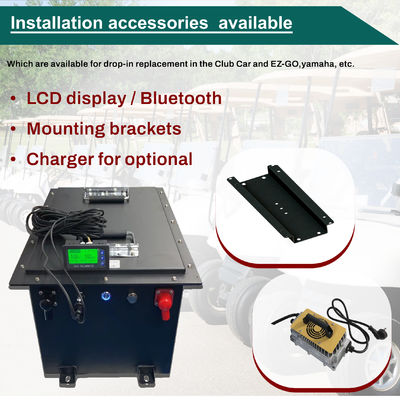

Multiple monitoring for optional of 48V Lithium golf cart battery:
By LCD .
By Bluetooth APP (Free)

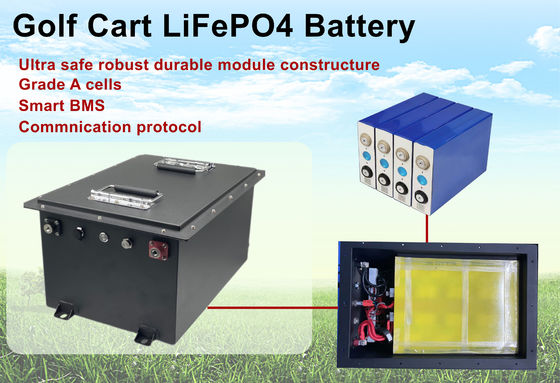

Bulit-in super safety lifepo4 prismatic cells and BMS
Multiple Protection Circuit with MOS / IC solution with low internal resistance
More Golf Cart Lithium Battery For Optional:
Welcome to customize LOG /Size /Functions / Color :
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
