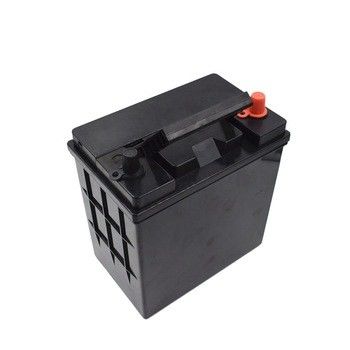

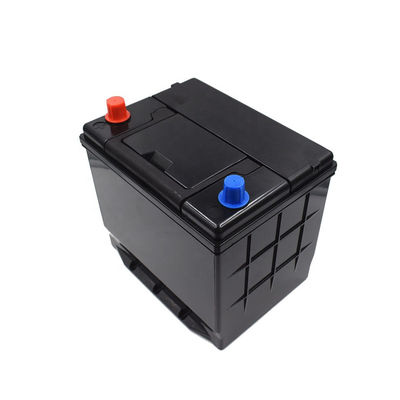

LiFePO4 Trolling Motors Batteries Lithium Cranking Battery 12V 40Ah 1000A For 70hp-250hp

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP12V40

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: 12v 40ah Trolling Lifepo4 Battery ,12V Lifepo4 Starter Battery,lithium Batteries For Car Marine Motor
Type:
LiFepo4 Trolling Motor Battery 12V
Nominal Voltage:
12.8V
Nominal Capacity:
40Ah
Energy:
512Wh
Weight:
6.5kg
Dimension:
L245*W176*H197mm
Max Charge Current:
40A
CCA:
1000CCA
Type:
LiFepo4 Trolling Motor Battery 12V
Nominal Voltage:
12.8V
Nominal Capacity:
40Ah
Energy:
512Wh
Weight:
6.5kg
Dimension:
L245*W176*H197mm
Max Charge Current:
40A
CCA:
1000CCA
LiFePO4 Trolling Motors Batteries Lithium Cranking Battery 12V 40Ah 1000A For 70hp-250hp

Rechargeable Lithium Trolling Motor Batteries 12V 40Ah 1000CCA Starting LiFePO4 Battery

  • Dependable cranking battery for both center console and offshore boats
  • For engines 70hp to 250hp (but can be used for smaller engines as well)
  • 1,000 cranking amps
  • 70% lighter than lead acid batteries & more compact
  • Has 2-4x the service life of lead acid batteries (3000-5000 cycles)
  • Equipped with an Advanced Battery Management System (BMS) with power terminal cut-off & recovery
  • Cell balancing & low voltage/over voltage protection
  • Short-circuit protection
  • Plug & play ready – easy drop in replacement
  • Weighs just 14.3 lbs
  • Energy efficient w/ 99% Depth Of Discharge (DOD)
  • Features a special emergency start function, with 25% of the battery reserved for emergency purposes



Features of 12V Trolling Motor 40Ah CCA 1000A Lithium LFP Battery Pack



Higher Performance LifePO4 battery
100% Maintenance free
With Different sizes

Dual purpose engine start and deep cycling

Powerful Cars,boat,light turck,SUVs etc....
Custom-made BMS With full over protection ,balancing function and short circuit protection
Lithium Iron Phosphate(LiFePO4) is the safest type of lithium battery and a ready to go replacement and updrade from lead acid, AGM or gel.



Specifiaction of Lithium Cranking Battery Packs:



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 40Ah   Weight 6.5kg
Nominal Energy 512Wh   Case Dimension(L*W*H) L244*W176*H197mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @8A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series NO   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 40A   Max Charge Current 40A
CCA 1000A   Recommended Charge Current 8A - 20A
Discharge pulse current 1100±50A (31±10ms)   End of Charge voltage 14.6V
BMS Low Voltge Cut-off 10V   End of disCharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60



LiFePO4 Trolling Motors Batteries Lithium Cranking Battery 12V 40Ah 1000A For 70hp-250hp 0LiFePO4 Trolling Motors Batteries Lithium Cranking Battery 12V 40Ah 1000A For 70hp-250hp 1LiFePO4 Trolling Motors Batteries Lithium Cranking Battery 12V 40Ah 1000A For 70hp-250hp 2

LiFePO4 Trolling Motors Batteries Lithium Cranking Battery 12V 40Ah 1000A For 70hp-250hp 3

FAQ



1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.



2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells



3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.



4.Do you accept OEM?
Yes sure, can customized your brand battery



5.May i get more starting lifepo4 battery?
Yes.
Crank Amps Optional : 200/400/600/800/1000/1200/1600CCA
Current Optional : 20Ah/40Ah/60Ah/80Ah/100Ah/120Ah
Group size optional : 24' 27' 31' 34'



6.How to get a quote?
Please contact with us sales6@leadyo-battery.com
