| Brand Name: | LEADYO |
| Model Number: | LP36V100 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Specification of LiFepo4 36V 100Ah Golf Cart Smart Battery with LCD or Bluetooth For Golf Cart
Leadyo lithium batteries are the only true "Drop-In-Ready" lithium batteries for Golf Cart ,ATV ,RV ,Marine Applications.
This versatile solution allows users to convert 36V lead-acid setups, most commonly 6 x 6V batteries or 3 x 12V, to lithium with Leadyo 36V 100Ah Batteries.
Choose from 1 x 36V 100Ah (100Ah) all the way up to 2 x 36V 200Ah (200Ah) lithium batteries for maximum range. Simply remove your existing lead-acid batteries and replace with the Leadyo batteries, attach cables in parallel, secure holding bracket, and the install is complete.
Our LiFePO4 golf cart batteries are designed to seamlessly integrate with popular golf cart brands such as EZGO, Club Car, Yamaha, and many others. Enjoy a hassle-free installation and experience optimal performance with our batteries specifically engineered to meet the requirements of these renowned golf cart models.
Whether you own an EZGO, Club Car, Yamaha, or any other compatible golf cart, our LiFePO4 batteries are the ideal power solution. Trust in their compatibility and reliability to enhance your golfing experience and power your cart with efficiency and longevity.
| Nominal voltage | (36V)38.4V | (36V)38.4V | (36V)38.4V | (36V)38.4V |
| Capacity (Ah) | 50Ah | 100Ah | 105Ah | 150Ah |
| Battery Energy | 1920Wh | 3840Wh | 4032Wh | 5760Wh |
| Self-discharge | ≤3% per month at 25 | ≤3% per month at 25 | ≤3% per month at 25 | ≤3% per month at 25 |
| Cycle life | >4000 cycles | >4000 cycles | >4000 cycles | >4000 cycles |
| Charge Mode | CC/CV | CC/CV | CC/CV | CC/CV |
| Charge Cut-off Voltage | 43.8V | 43.8V | 43.8V | 43.8V |
| Recommended Charge Current | 10A-20A | 10A-50A | 10A-50A | 30A-75A |
| Max. Continuous Charge Current | 100A | 100A | 100A | 100A |
| Max. Continuous Discharge Current | 70A | 150A | 150A | 200A |
| Max. Pulse Current | 100A 20S | 200A 40S | 200A 40S | 300A 40S |
| 150A/0.5S | 700A/0.5S | 700A/0.5S | 900A/0.5S | |
| Discharge Cut-off Voltage | 24V | 24V | 24V | 24V |
| Communication mode | UART/RS485/CAN | UART/RS485/CAN | UART/RS485/CAN | UART/RS485/CAN |
| Storage temperature | 0~45℃ | 0~45℃ | 0~45℃ | 0~45℃ |
| Working Environment | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) |
| -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) | |
| Housing Material | Metal case | Metal case | Metal case | Metal case |
| Bluetooth 5.0 | Yes | Yes | Yes | Yes |
| Display Screen | Optional | Optional | Optional | Optional |
| OEM & ODM | Optional | Optional | Optional | Optional |
| Dimension | 483*170*240 | 385*325*245 | 385*325*245 | 572*308*204 |
| Weight | 44.00lbs.(20kg) | 83.77lbs.(38kg) | 83.77lbs.(38kg) | 124.74lbs.(52kg) |

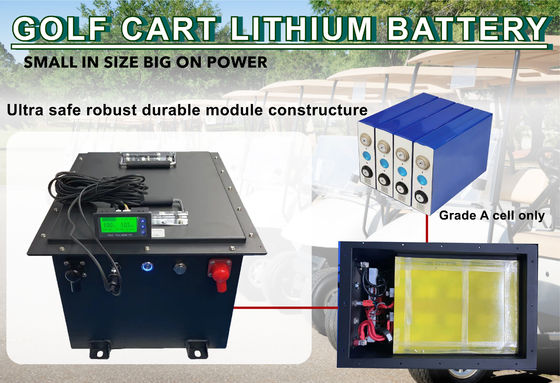

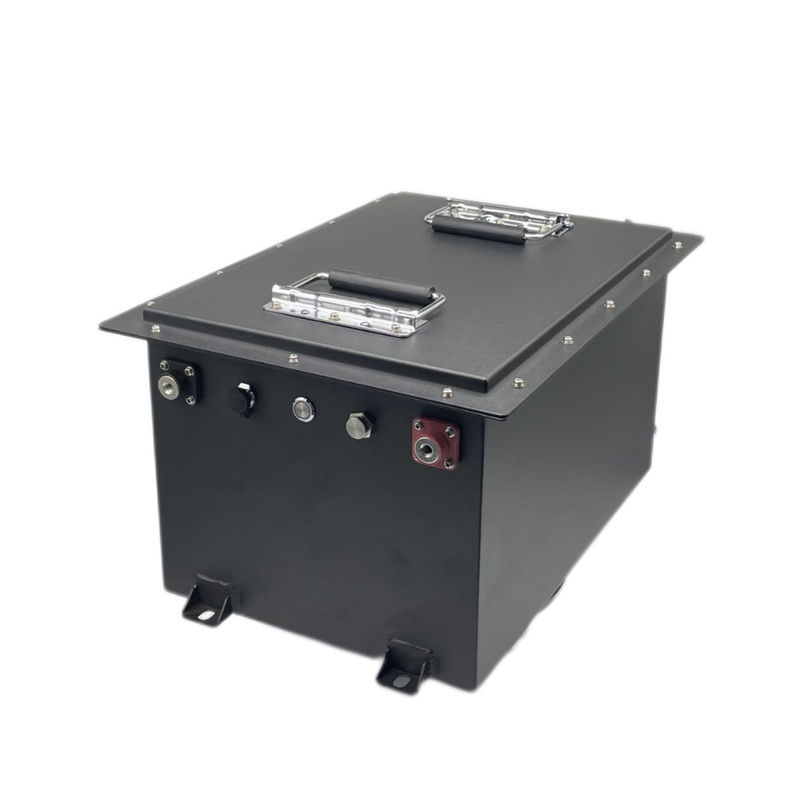

Picture of 36V 100Ah Lithium iron LFP battery ,Golf Cart LiFePO4 Battery
We have 2 mamy function for your golf cart optional
Product Characteristics lifepo4 battery golf cart battery 36V 100Ah:
Advanced Lithium-Ion Technology: The Golf Cart Lithium Battery utilizes advanced lithium-ion technology, specifically LiFePO4 chemistry, known for its high energy density, longevity, and safety features.
Intelligent Battery Management System (BMS): Each battery is equipped with a sophisticated BMS that monitors and protects the battery cells from overcharging, over-discharging, and excessive temperatures. This ensures safe and efficient operation.
Voltage Stability: The Golf Cart Lithium Battery maintains a stable voltage output throughout its discharge cycle, providing a consistent and reliable power supply to the golf cart's electrical system.
Compact Form Factor: The battery's compact size enables easy installation and integration into golf carts, optimizing space utilization without compromising performance.
High Efficiency: This lithium battery offers high energy efficiency, minimizing power wastage and maximizing the utilization of stored energy. It helps to extend the battery's range and operating time.
Upgrade to LiFePO4 Batteries for Your Golf Cart and Experience the Difference
When compared to traditional AGM/lead acid batteries, LiFePO4 batteries, also known as lithium iron phosphate batteries, offer a multitude of advantages:
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order and what's your MOQ?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
NO MOQ
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
|
