Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP36V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Lifepo4 Golf Cart Battery Pack,deep Cycle Golf Cart Batteries |
Voltage: |
36V |
Capacity: |
100Ah |
Charging Voltage: |
43.8V |
Cycle Life: |
5000 Times |
Max Charge Current: |
50A |
Max Discharge Current: |
100A (150A Is Optional) |
Operating Temperature: |
-20℃~60℃ |
Protection: |
Over-charge, Over-discharge, Over-current, Short Circuit |
Warranty: |
5 Years |
Highlight: |
Lifepo4 Golf Cart Batteris 36V 100Ah |
Type: |
Lifepo4 Golf Cart Battery Pack,deep Cycle Golf Cart Batteries |
Voltage: |
36V |
Capacity: |
100Ah |
Charging Voltage: |
43.8V |
Cycle Life: |
5000 Times |
Max Charge Current: |
50A |
Max Discharge Current: |
100A (150A Is Optional) |
Operating Temperature: |
-20℃~60℃ |
Protection: |
Over-charge, Over-discharge, Over-current, Short Circuit |
Warranty: |
5 Years |
Highlight: |
Lifepo4 Golf Cart Batteris 36V 100Ah |
Drop-in Replacement & Upgrade from AGM LiFepo4 36V 100Ah Golf Cart Smart Battery with LCD or Bluetooth For Golf Cart Battery
A groundbreaking LiFePO4 Golf Cart Battery has been introduced, promising to revolutionize the golfing experience with its exceptional performance, extended driving range, and unparalleled efficiency. This innovative battery solution, designed specifically for golf carts, is set to elevate the game by providing golfers with a reliable and powerful energy storage system.
Perfectly Compatible with EZGO, Club Car, Yamaha, and More Golf Cart Models
Our LiFePO4 golf cart batteries are designed to seamlessly integrate with popular golf cart brands such as EZGO, Club Car, Yamaha, and many others. Enjoy a hassle-free installation and experience optimal performance with our batteries specifically engineered to meet the requirements of these renowned golf cart models.
Whether you own an EZGO, Club Car, Yamaha, or any other compatible golf cart, our LiFePO4 batteries are the ideal power solution. Trust in their compatibility and reliability to enhance your golfing experience and power your cart with efficiency and longevity.
Specification of LiFepo4 36V Golf Cart Smart Battery with LCD or Bluetooth
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
| Nominal Voltage | 38.4V | Terminal Type | M8 |
| Nominal Capacity | 100Ah | Weight | 30kg |
| Nominal Energy | 3840Wh | Case Dimension(L*W*H) | 385*325*245mm |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | |
| Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | |
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | ||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A |
| Peak Current | 300A /10s | Recommended Charge Current | 20A - 50A |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 43.8V±0.2V |
| BMS Low Voltge Cut-off | 24V | End of discharge voltage | 24V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | ||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | |
| Storage Temperature Range | -20～+45℃ | ||
| Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 |

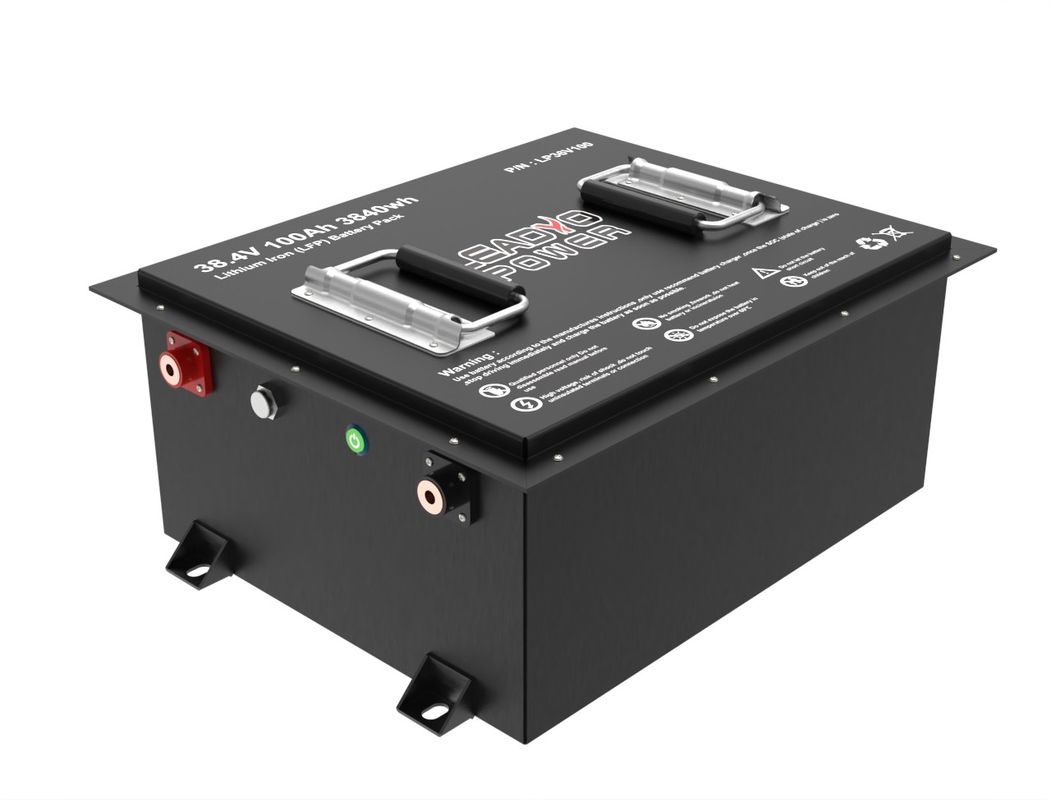

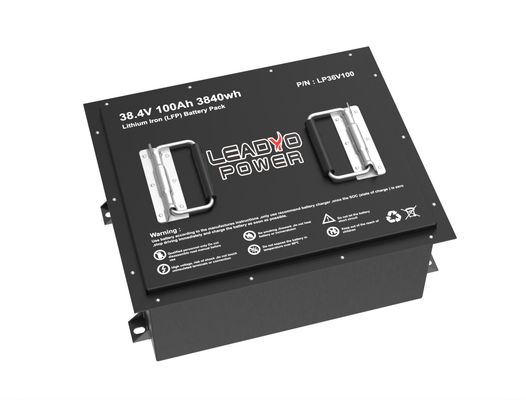

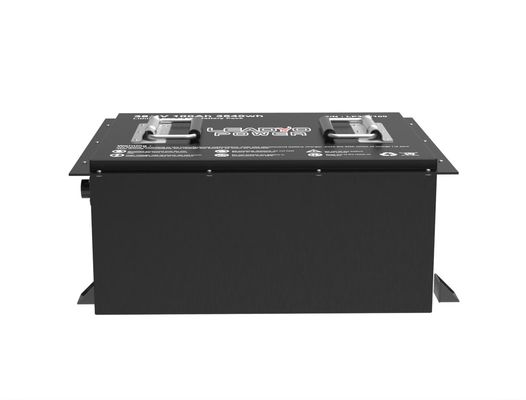

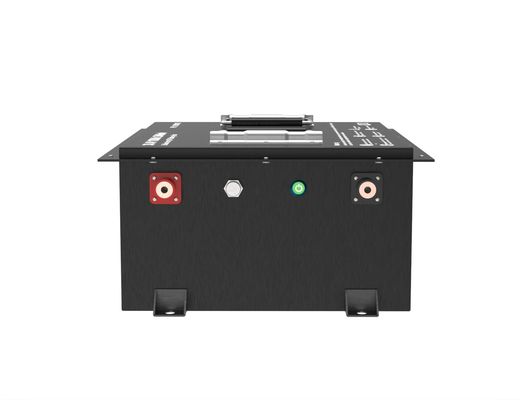

Pictures of 36V 100Ah LiFePO4 Golf Cart Battery
The LiFePO4 Golf Cart Battery offers several key features that set it apart from traditional battery technologies. With its advanced design and cutting-edge technology, this battery provides golfers with a superior power source to optimize their performance on the course. Some of the notable features include:
Lithium Iron Phosphate Chemistry: The battery utilizes LiFePO4 chemistry, which enhances stability, safety, and energy density. This chemistry ensures a consistent and reliable power supply to the golf cart, enabling smooth acceleration and improved driving range.
Lightweight Design: The battery boasts a lightweight construction, reducing the overall weight of the golf cart. This feature enhances maneuverability, allowing golfers to navigate the course effortlessly and enjoy a more comfortable ride.
High Energy Efficiency: The LiFePO4 Golf Cart Battery exhibits exceptional energy efficiency, converting a greater percentage of stored energy into usable power. This efficiency translates into extended driving ranges, allowing golfers to complete multiple rounds without the need for frequent recharging.
Rapid Charging Capability: The battery offers rapid charging capabilities, significantly reducing charging time compared to traditional batteries. Golfers can spend less time waiting for their batteries to charge and more time on the course, maximizing their golfing experience.
Long Lifespan: With an extended cycle life, the LiFePO4 Golf Cart Battery outperforms conventional batteries, providing longevity and cost savings over time. Golfers can rely on this battery to deliver consistent performance throughout its lifespan.
Installing a LiFePO4 battery in your golf cart is a straightforward process. Here's a step-by-step guide to help you:
1. Safety First: Before beginning the installation, ensure that the golf cart is turned off and the key is removed. Wear protective gloves and eyewear during the installation process.
2. Prepare the Battery Compartment: Remove any existing batteries from the golf cart's battery compartment. Clean the compartment thoroughly and ensure it is free from any debris or corrosion.
3. Position the LiFePO4 Battery: Place the LiFePO4 battery securely in the battery compartment. Ensure that it is positioned correctly and aligned with the battery terminals.
4. Connect the Cables: Connect the positive (+) terminal of the LiFePO4 battery to the positive (+) cable of the golf cart. Similarly, connect the negative (-) terminal of the battery to the negative (-) cable.
5. Secure the Connections: Use appropriate tools (such as wrenches or pliers) to tighten the cable connections securely. Ensure that there is no loose or exposed wiring.
6. Verify Connections: Double-check all the cable connections to ensure they are properly secured. Confirm that the positive (+) cable is connected to the positive (+) terminal and the negative (-) cable to the negative (-) terminal.
7. Insulate the Connections: To prevent accidental short circuits, cover the cable connections with insulated terminal covers or electrical tape. This will provide an extra layer of protection.
8. Test the Installation: Once the LiFePO4 battery is installed and all connections are secured, turn on the golf cart and test its functionality. Verify that the battery is providing power to the cart and that all systems are functioning properly.
Note: It's always recommended to refer to the manufacturer's instructions and guidelines specific to your golf cart model and the LiFePO4 battery you are installing. If you are unsure or uncomfortable with the installation process, it's advisable to seek professional assistance from a qualified technician.
By following these steps and ensuring a secure and proper installation, you can seamlessly upgrade your golf cart with a LiFePO4 battery and enjoy its benefits.
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
