51.2V 105Ah Golf Carts LiFePO4 Battery integrated BMS 48v Lifepo4 Golf Cart Battery

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP48V105

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: 48 Lifepo4 Golf Cart Battery
Type:
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries
Voltage:
48V 51.2V
Capacity:
105Ah
Weight:
45kg
Dimension((L*W*H):
472*334*247mm
Case:
Metal Case
Charging Voltage:
57.6V
Cycle:
5000+
Discharge:
2C Continuous
Charge:
0.C-1C
Commnication:
Bluetooth , LCD ,RS232 ,RS485 OR CANBUS
Type:
Lifepo4 Battery Pack,lithium Ion Battery ,lithium Iron Phosphate Battery,deep Cycle Batteries
Voltage:
48V 51.2V
Capacity:
105Ah
Weight:
45kg
Dimension((L*W*H):
472*334*247mm
Case:
Metal Case
Charging Voltage:
57.6V
Cycle:
5000+
Discharge:
2C Continuous
Charge:
0.C-1C
Commnication:
Bluetooth , LCD ,RS232 ,RS485 OR CANBUS
51.2V 105Ah Golf Carts LiFePO4 Battery integrated BMS 48v Lifepo4 Golf Cart Battery

High Current Golf Cart Lifepo4 48V 150Ah 100A 2560Wh Battery Rechargeable Batttery



【 For Golf Carts】The Leadyo 51.2V 105Ah Golf Cart LiFePO4 lithium Battery is equipped with an integrated 150A BMS that supports a maximum 2C rate continuous discharging current. It’s designed as a drop-in replacement for AGM batteries in golf carts and is also suitable for a variety of low-speed power vehicles, including club carts, electric shuttle buses, street-legal carts, and electric trike scooters, operating at speeds below 21 mph (35 km/h). With a massive 3072Wh energy capacity, this battery allows for double the runtime, providing you with extended freedom both on and off the green.

51.2V 105Ah Golf Carts LiFePO4 Battery integrated BMS 48v Lifepo4 Golf Cart Battery 0



Specification of lifepo4 golf cart 48V 51.2V 50Ah Lithium Battery

Lithium iron phosphate (LiFePO4) battery packs have gained popularity as a preferred choice for golf carts due to several compelling reasons. Firstly, LiFePO4 batteries offer a higher energy density compared to traditional lead-acid batteries commonly used in golf carts. This means that they can store more energy in a smaller and lighter package, allowing the golf cart to travel longer distances on a single charge.

Nominal voltage (36V)38.4V (36V)38.4V (48V)51.2V (48V)51.2V
Capacity (Ah) 50Ah 100Ah 105Ah 150Ah
Battery Energy 1920Wh 3840Wh 5376Wh 7680Wh
Self-discharge ≤3% per month at 25 ≤3% per month at 25 ≤3% per month at 25 ≤3% per month at 25
Cycle life >4000 cycles >4000 cycles >4000 cycles >4000 cycles
Charge Mode CC/CV CC/CV CC/CV CC/CV
Charge Cut-off Voltage 43.8V 43.8V 43.8V 43.8V
Recommended Charge Current 10A-20A 10A-50A 10A-50A 30A-75A
Max. Continuous Charge Current 100A 100A 150A 150A
Max. Continuous Discharge Current 70A 150A 200A 200A
Max. Pulse Current 100A 20S 200A 40S 200A 40S 300A 40S
150A/0.5S 700A/0.5S 700A/0.5S 900A/0.5S
Discharge Cut-off Voltage 24V 24V 24V 24V
Communication mode UART/RS485/CAN UART/RS485/CAN UART/RS485/CAN UART/RS485/CAN
Storage temperature 0~45 0~45 0~45 0~45
Working Environment 0~+55℃(Charge) 0~+55℃(Charge) 0~+55℃(Charge) 0~+55℃(Charge)
-20~+65℃(Discharge) -20~+65℃(Discharge) -20~+65℃(Discharge) -20~+65℃(Discharge)
Housing Material Metal case Metal case Metal case Metal case
Bluetooth 5.0 Yes Yes Yes Yes
Display Screen Optional Optional Optional Optional
OEM & ODM Optional Optional Optional Optional
Dimension 483*170*240 385*325*245 472*334*247 800*316*217
Weight 44.00lbs.(20kg) 83.77lbs.(38kg) 99.20lbs.(45kg) 163.13lbs.(74kg)

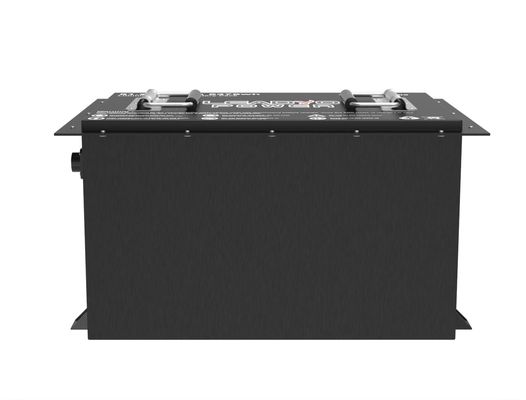

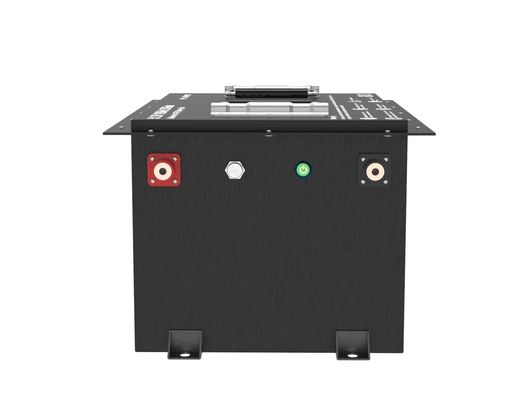

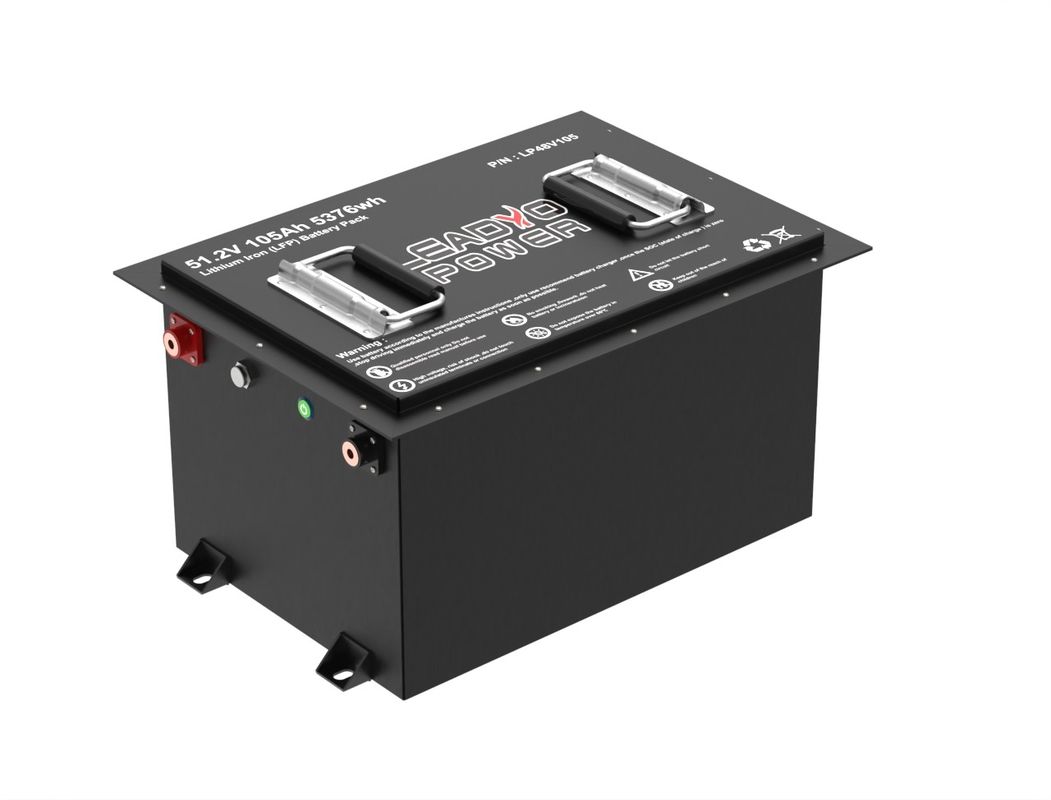

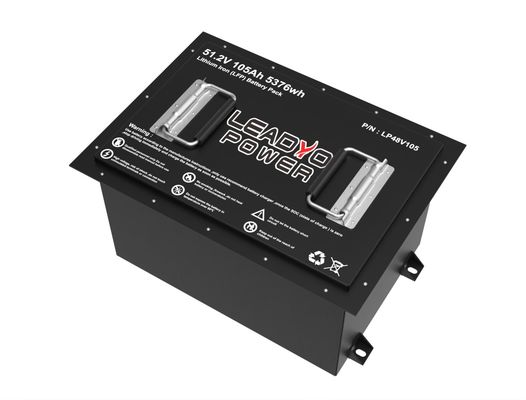

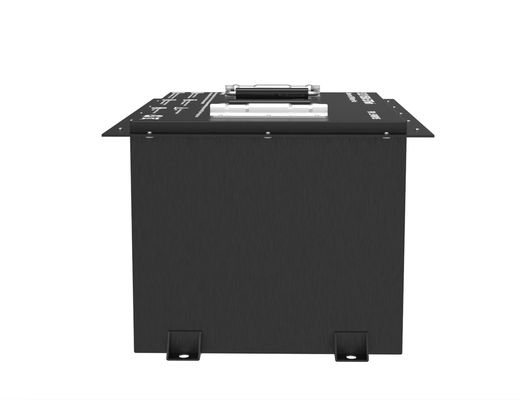

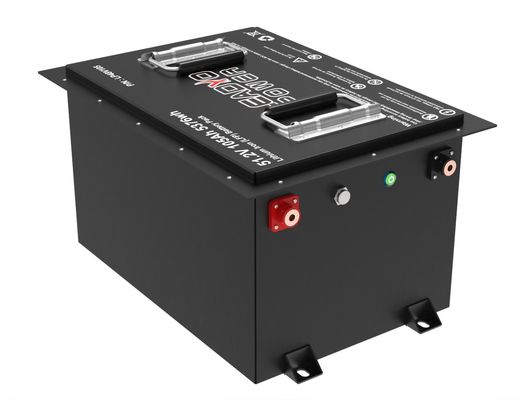

Picture of 51.2V 105Ah 48V Lithium iron LFP battery ,Golf Cart LiFePO4 Battery



51.2V 105Ah Golf Carts LiFePO4 Battery integrated BMS 48v Lifepo4 Golf Cart Battery 151.2V 105Ah Golf Carts LiFePO4 Battery integrated BMS 48v Lifepo4 Golf Cart Battery 251.2V 105Ah Golf Carts LiFePO4 Battery integrated BMS 48v Lifepo4 Golf Cart Battery 3



Here are the key features of lifepo4 golf cart battery 48V 51.2V 105Ah :



Temperature Stability: LiFePO4 batteries exhibit excellent temperature stability, performing reliably in a wide range of temperatures. They can withstand both high and low temperatures without compromising their performance or cycle life. This makes them suitable for golfing environments that experience extreme weather conditions.

Voltage Stability: LiFePO4 batteries maintain a stable voltage throughout their discharge cycle. This means that the golf cart's performance remains consistent, providing a steady power supply until the battery is fully discharged. This voltage stability ensures a smooth and uninterrupted ride for golfers.

Deep Discharge Capability: LiFePO4 batteries can be discharged to a much lower depth of discharge (DOD) compared to lead-acid batteries. They can utilize a higher percentage of their capacity without damaging the battery or affecting its longevity. This allows golfers to utilize more of the available energy in the battery pack and maximize their cart's range.

Compatibility: The Golf Cart LiFePO4 Battery is designed to be compatible with a wide range of golf cart models. It can be easily integrated into existing golf carts without requiring extensive modifications or adaptations. This ensures a seamless transition from traditional lead-acid batteries to the advanced LiFePO4 technology.

Scalability: LiFePO4 batteries offer scalability options, allowing golf cart owners to customize the battery pack size according to their specific requirements. Whether you need a standard-sized battery pack or a larger capacity for extended range, the LiFePO4 technology can be tailored to meet your needs.

Advanced Battery Management System (BMS): The Golf Cart LiFePO4 Battery is equipped with a sophisticated Battery Management System that ensures optimal performance and protects the battery from overcharging, over-discharging, and excessive temperature fluctuations. The BMS helps prolong the battery life and enhances overall safety.

Cost-Effectiveness: While LiFePO4 batteries may have a higher upfront cost compared to lead-acid batteries, they offer significant long-term cost savings. Their extended cycle life, reduced maintenance requirements, and higher energy efficiency result in lower overall operating costs over the battery's lifespan.

Application Versatility: The Golf Cart LiFePO4 Battery is not limited to golf carts alone. Its versatile design makes it suitable for various other electric vehicle applications, such as electric scooters, electric bikes, and utility vehicles. This means that the battery can be utilized beyond the golf course, providing flexibility and value for different purposes.
