Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: AT12V120
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
120Ah |
Weight: |
14kg |
Dimension: |
L355xW175xH188mm Or Other Case |
Max Charge Current: |
50A |
Max Discharge Current: |
100A |
CCA: |
1400CCA |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
120Ah |
Weight: |
14kg |
Dimension: |
L355xW175xH188mm Or Other Case |
Max Charge Current: |
50A |
Max Discharge Current: |
100A |
CCA: |
1400CCA |

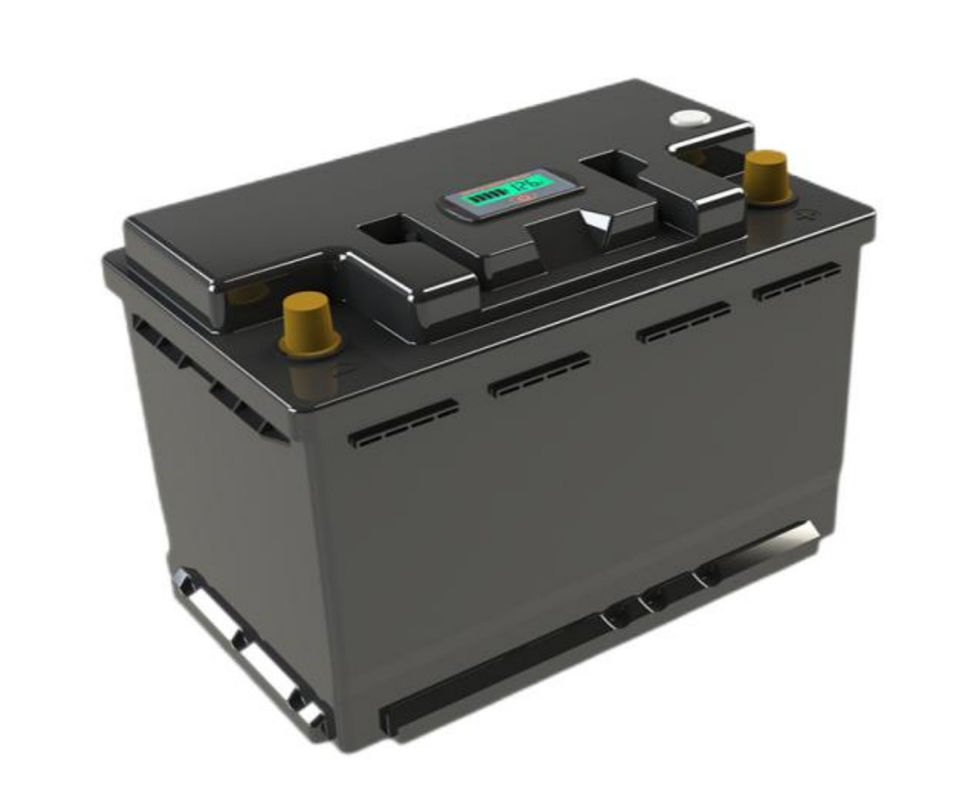

LiFePO4 Starting battery 12V 120Ah 1400A Trolling motor Lithium Battery For boat , vechiles , truck .etc
Brief introductio of Lifepo4 starter battery 12V 120Ah 1400A trolling motor battery
Nominal Voltage 12.8V
Nominal Capacity 120 Ah
Capacity @ 40A 180 min
Energy 1536Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features of Lifepo4 starter battery 12V 120Ah 1400A trolling motor battery
Specifications of Lifepo4 starter battery 12V 120Ah 1400A trolling motor battery
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
| Nominal Voltage | 12.8V | Terminal Type | round bolt |
| Nominal Capacity | 120Ah | Weight | 14kg |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | L355xW175xH188mm (or other size ) |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS |
| Capacity | @20A: 180minutes(3hours) | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | |
| Maximum In Parallel | No | Over current,short-circuit protection .etc | |
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | ||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A |
| CCA | 1400A | Recommended Charge Current | 20A - 50A |
| Discharge pulse current | 1500±50A (31±10ms) | End of Charge voltage | 14.6V |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | ||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | |
| Storage Temperature Range | -20～+45℃ | ||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 |
| Battery High Temperature Protection | 60℃ | ||
FAQ
Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest up to 48V.
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
