Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V120
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
RV Lifepo4 Battery 12v 120ah |
Voltage: |
12.8V |
Capacity: |
120Ah |
Dimension: |
330*170*210mm |
Weight: |
13kg |
Custom: |
Support |
Case: |
ABS Case |
Waterproof: |
IP65,IP66 |
Type: |
RV Lifepo4 Battery 12v 120ah |
Voltage: |
12.8V |
Capacity: |
120Ah |
Dimension: |
330*170*210mm |
Weight: |
13kg |
Custom: |
Support |
Case: |
ABS Case |
Waterproof: |
IP65,IP66 |

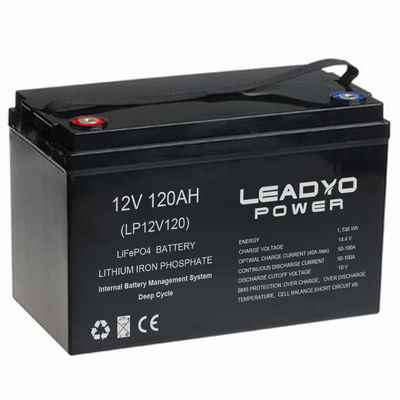

Group 31 size 12.8V Rechargeable Lithium iron Marine / RV Battery 12V 120Ah LiFePO4 Deep Cycle Batteries with Smart BMS
Spec of Lithium Iron Phosphate Battery 12.8V 120Ah
Nominal Voltage 12.8V
Nominal Capacity 120 Ah
Capacity @ 24A 300 min
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Are you looking for a lightweight battery to power your 12V electronics or trolling motor?
LEADYO 12V 120Ah Bluetooth Lithium Battery has a advanced bluetooth technology to view your battery voltage and capacity right from your smartphone. Not only will it save you room but it also cuts your weight by about 60%! Built with Lithium Iron Phosphate (LiFePO4) technology this battery has twice the power, a fraction of the weight, and lasts 4 times longer than a sealed lead acid battery. Very simple plug ang play! Up to 3 batteries can be wired in series for 24v & 36v trolling motors for 120Ah of capacity!
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 120Ah | Weight | 16kg | |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | 330*170*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 300A | Recommended Charge Current | 25A - 60A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
