Brand Name: | LEADYO |
Model Number: | LP12V120 |
MOQ: | 1pcs |
Price: | Negotiable |
Packaging Details: | UN3480 Standard Export |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
12V lithium Iron rechargeable 12.8V 100Ah 120Ah Lifepo4 batteries for caravan , off road , camper trailer
Our Advantages:
We are one stop solution manufacturer,we use our self-developed custom -made BMS ,Our BMS Technology (powered by Texas structure US or Seiko Japan) is designed for our battery. Together with our class a batteries (China Leading brand Cells ),Most customers choose our battery packs because our internal process is perfect, humanized, safe and our Advanced BMS system.we ensure that you have a good quality and competitive price.
Specs Of the 12v lithium ion rechargeable battery
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 12.8V | Terminal Type | Car Terminals | |
Nominal Capacity | 120Ah | Weight | 13.5kg | |
Nominal Energy | 1536Wh | Case Dimension(L*W*H) | L355xW175xH188mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS+ Screwable design | |
Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
Peak Current | 500A | Recommended Charge Current | 20A - 100A | |
Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 & BIS for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |

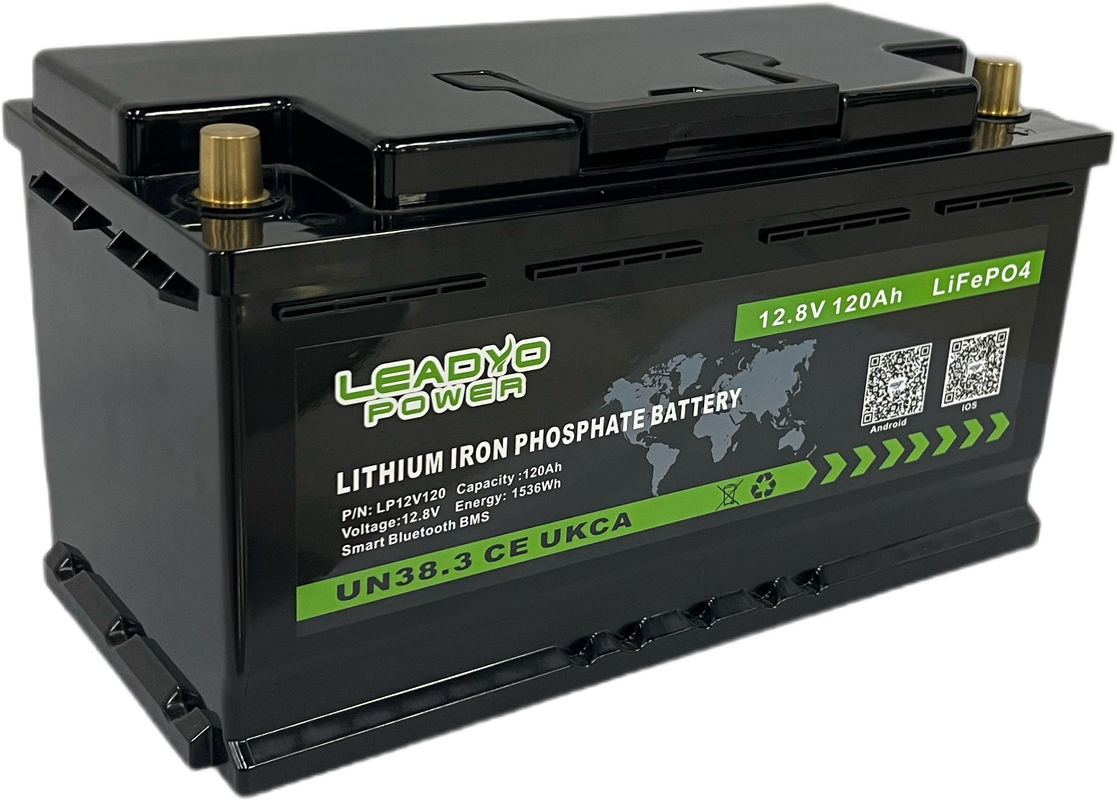

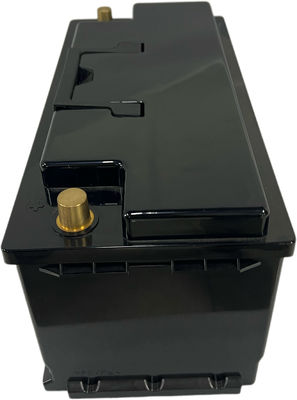

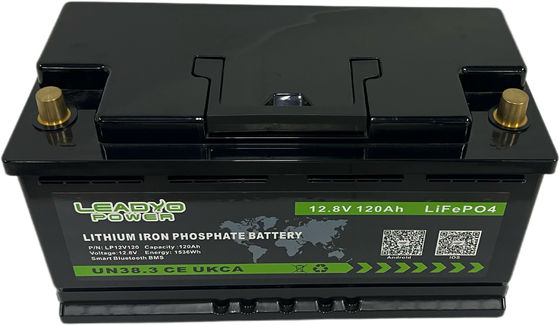

Pictures Of the 12v lithium ion rechargeable battery
Bluetooth APP Of the 12v lithium ion rechargeable battery
FAQ Of the 12v lithium ion rechargeable battery
![]() |
