Factory Direct Supply 12V 150Ah RV Caravan Lifepo4 Batteries With Group 31 Size

Brand Name:	LEADYO
Model Number:	LP12V150
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	UN3480 Standard Export
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, CE,MSDS,UKCA

Type:

RV Lifepo4 12v 150ah Batteries

Voltage:

12.8V

Capacity:

150Ah

Dimension:

330*170*210mm

Weight:

Custom:

Support

Case:

ABS Case

Waterproof:

IP65,IP66

Supply Ability:

60Mwh

Highlight:

Deep Cycle Marine Batteries,lithium Marine Battery,120ah Lithium Battery

Product Description

Group 31 size 12.8V Rechargeable Lithium iron Marine / RV Battery 12V 150Ah LiFePO4 Deep Cycle Batteries with Smart BMS

Spec of Lithium Iron Phosphate Battery 12.8V 150Ah

Nominal Voltage 12.8V
Nominal Capacity 150 Ah
Capacity @ 30A 300 min
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.

Are you looking for a lightweight battery to power your 12V electronics or trolling motor?

LEADYO 12V 120Ah Bluetooth Lithium Battery has a advanced bluetooth technology to view your battery voltage and capacity right from your smartphone. Not only will it save you room but it also cuts your weight by about 60%! Built with Lithium Iron Phosphate (LiFePO4) technology this battery has twice the power, a fraction of the weight, and lasts 4 times longer than a sealed lead acid battery. Very simple plug ang play! Up to 3 batteries can be wired in series for 24v & 36v trolling motors for 120Ah of capacity!

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	150Ah	Weight	16kg
Nominal Energy	1920Wh	Case Dimension(LWH)	330170210mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@25A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series and Parallel	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	150A
Peak Current	300A	Recommended Charge Current	25A - 60A
Discharge pulse current	500±50A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

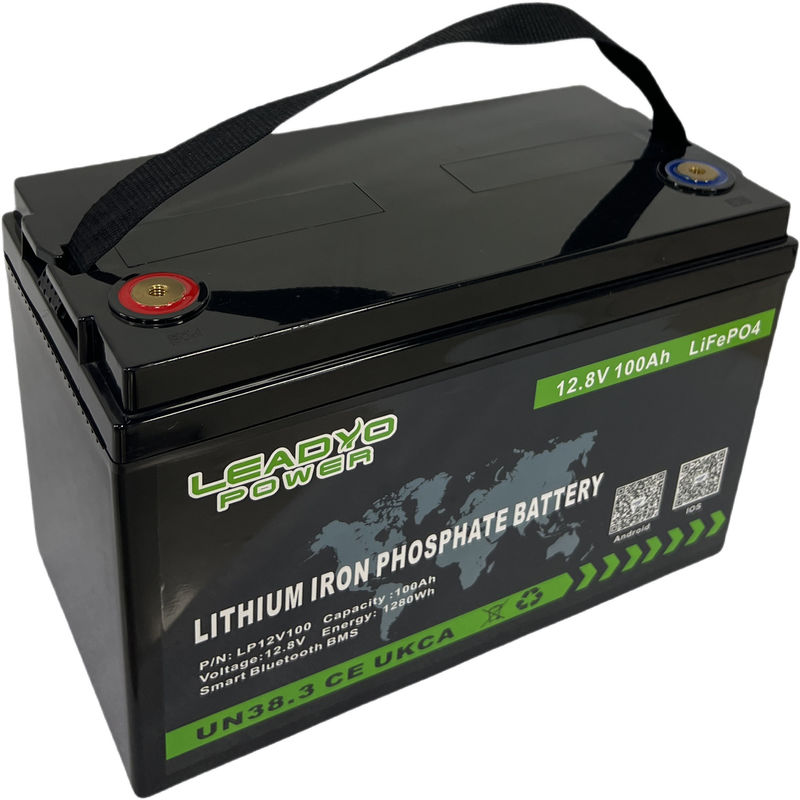

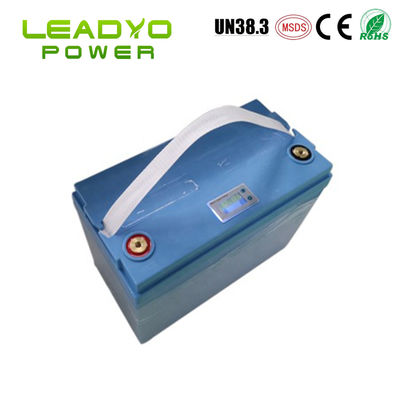

Picture for reference :

Factory Direct Supply 12V 150Ah RV Caravan Lifepo4 Batteries With Group 31 Size 0

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.

2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells

3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

4.Do you accept OEM?
Yes sure, can customized your brand battery

5.May i get more golf cart lifepo4 battery?
Yes,please contact us.

6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
