| Brand Name: | LEADYO |
| Model Number: | LP12V400 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

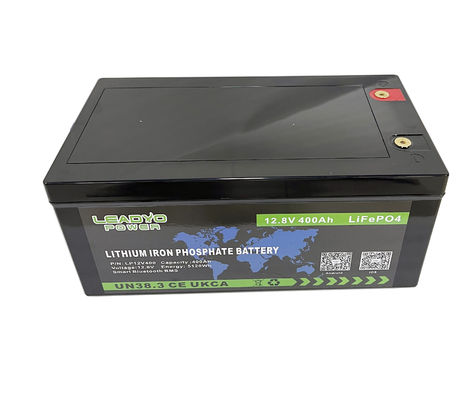

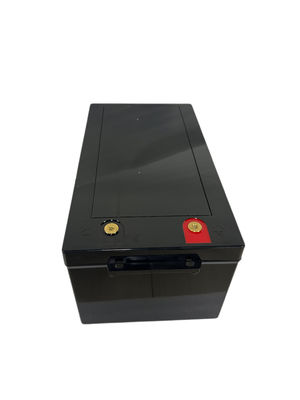

Smart Bluetooth LiFePO4 battery 12V 400Ah 5120wh lithium iron rechargeable batteries
The built in Bluetooth feature enables the monitoring of each battery State-of-Charge (SoC) via a Smartphone APP. LEADYO LiFePO4 batteries feature a LiFePO4 POWER App that gives real-time access to battery State of Charge, voltage, operating current, temperature, and other operating information.Search for LiFePO4 POWER on the Apple App Store or Google Play.
Can Customized APP With your Company infomration
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 400Ah | Weight | 30kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 520*269*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS+ Screwable design | |
| Capacity | @80A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
|
