Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP36V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Keyword: |
Golf Cart Lithium Batteries |
Voltage: |
38.4V |
Capacity: |
100Ah |
Weight: |
38kg |
Dimension((L*W*H): |
385*325*245mm |
Continuous Discharge: |
100A (150A /10s) |
Warranty: |
5 Years |
Commnication: |
LDC / BLUETOOT /CAN/RS485. |
Cycles: |
5000+ @0.2C |
Keyword: |
Golf Cart Lithium Batteries |
Voltage: |
38.4V |
Capacity: |
100Ah |
Weight: |
38kg |
Dimension((L*W*H): |
385*325*245mm |
Continuous Discharge: |
100A (150A /10s) |
Warranty: |
5 Years |
Commnication: |
LDC / BLUETOOT /CAN/RS485. |
Cycles: |
5000+ @0.2C |

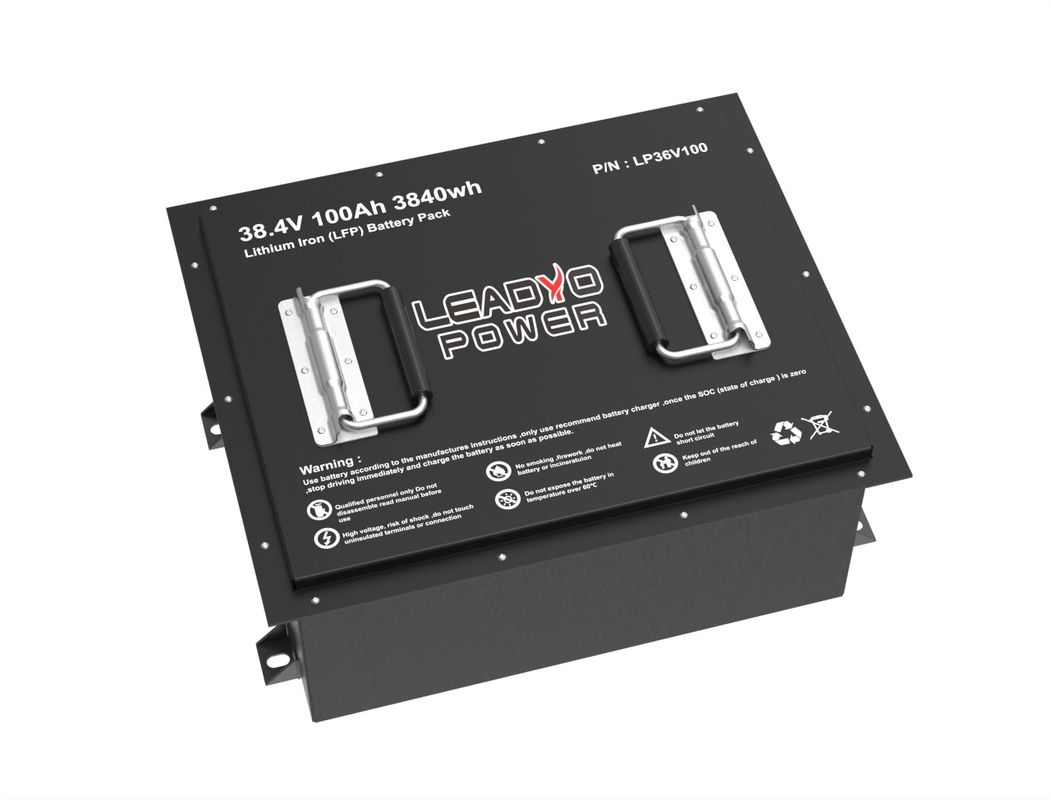

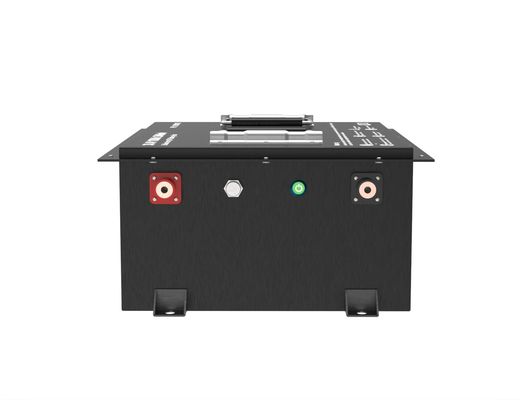

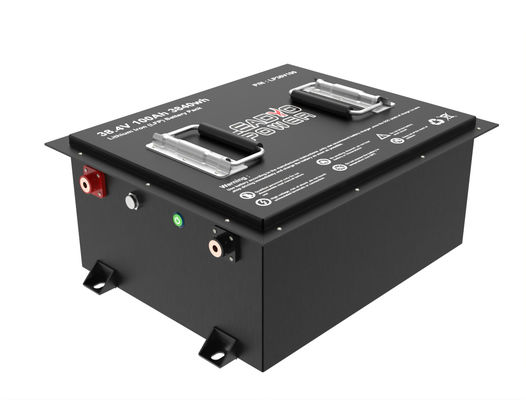

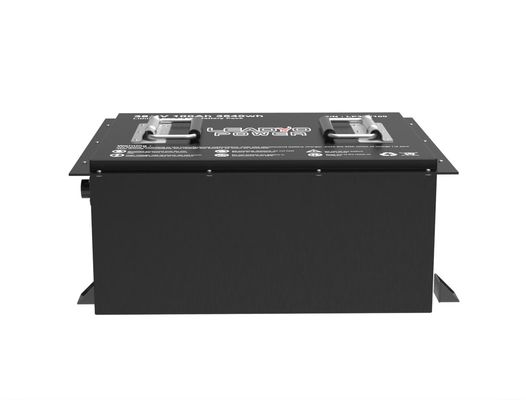

Golf Cart Lithium Batteries 36V 100Ah 38.4V Battery equipped with 100A-150A BMS with CAN ,RS485 Commnication or Bluetooth For Optional :
Product Introduction of golf cart lithium batteries
The Leadyo Golf Cart Lithium Battery is a state-of-the-art power solution meticulously engineered for golf carts. It leverages the latest advancements in lithium-ion technology, particularly Lithium Iron Phosphate (LiFePO4), to provide unparalleled performance and dependability. Featuring a compact design and remarkable energy storage capabilities, this battery transforms the traditional approach to golf cart power systems.
Product Characteristics lifepo4 battery golf cart battery 36V 100Ah:
Introducing Leadyo's High-Performance Lithium Golf Cart Deep Cycle Batteries - specifically the 38.4V 36V 100Ah, 100A, 3.84Kwh LiFePO4 Battery Pack designed for golf carts. These batteries are engineered to deliver exceptional power and reliability, ensuring optimal performance on the golf course. With their advanced LiFePO4 chemistry, they offer extended cycle life, high energy density, and fast charging capabilities. Leadyo's Lithium Golf Cart Deep Cycle Batteries provide a reliable and efficient power solution, enabling golf cart owners to enjoy enhanced performance and extended usage time.
Specification of golf cart lithium batteries 36V 100Ah
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
Nominal Voltage | 38.4V | Terminal Type | M8 |
Nominal Capacity | 100Ah | Weight | 38kg |
Nominal Energy | 3.85kWh | Case Dimension(L*W*H) | 385*325*245mm |
Internal Resistance | ≤30 @50% SOC | Case Type | Metal case |
Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional |
Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | |
Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | |
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | ||
MAX Continuous Discharge Current | 150A | Max Charge Current | 100A |
Peak Current | 200A /10s | Recommended Charge Current | 20A - 50A |
Discharge pulse current | 300±50A (31±10ms) | End of Charge voltage | 43.8V±0.2V |
BMS Low Voltge Cut-off | 30V | End of discharge voltage | 30V |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | ||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | |
Storage Temperature Range | -20~+45℃ | ||
Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 |
Lifepo4 golf cart battery with charger
Upgrade to LiFePO4 Batteries for Your Golf Cart and Experience the Difference
Upgrade your golf cart to LiFePO4 batteries and unlock the full potential of your vehicle. Experience the convenience of plug-and-play installation, enhanced power storage, lightweight design, and extended lifespan. Make the switch today and elevate your golfing experience to new heights.
