Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V150
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Keyword: |
Electric Golf Cart Batteries |
Voltage: |
48V |
Capacity: |
150Ah |
Weight: |
74kg |
Dimension((L*W*H): |
800*316*217mm |
Continuous Discharge: |
150A (200A /10s) |
Warranty: |
5 Years |
Commnication: |
LDC / BLUETOOT /CAN/RS485. |
Cycles: |
5000+ @0.2C |
Keyword: |
Electric Golf Cart Batteries |
Voltage: |
48V |
Capacity: |
150Ah |
Weight: |
74kg |
Dimension((L*W*H): |
800*316*217mm |
Continuous Discharge: |
150A (200A /10s) |
Warranty: |
5 Years |
Commnication: |
LDC / BLUETOOT /CAN/RS485. |
Cycles: |
5000+ @0.2C |

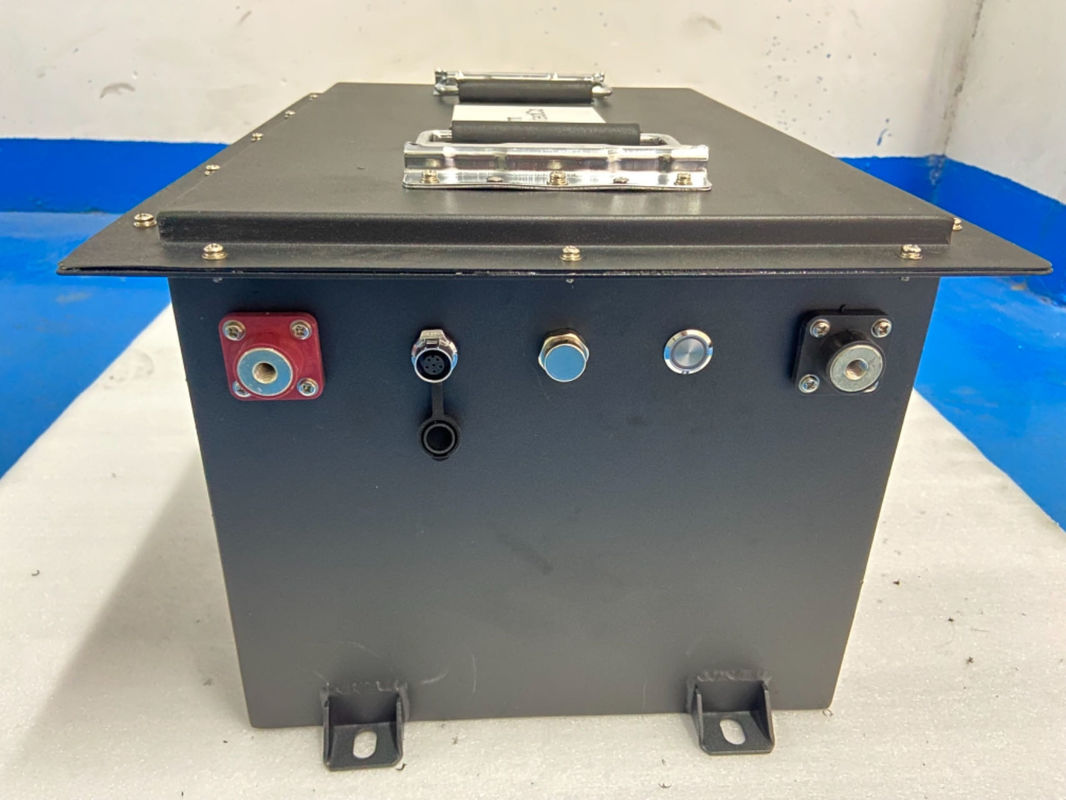

Electric Golf Cart Batteries 48V 51.2V 150Ah LFP with 150A-200A BMS with CAN ,RS485 Commnication ,Rechargeable Batteries with LCD for Golf Carts Applications
The ideal drop-in replacement & upgrade from AGM ,the Golf Cart Lithium Battery is a technologically advanced power solution that brings numerous benefits to golf cart owners. With its high energy density, extended cycle life, fast charging capability, and maintenance-free operation, it enhances the performance, range, and overall experience of using a golf cart. Its durability, environmental friendliness, and compact design make it a reliable and sustainable choice for powering golf carts.
Product Characteristics of Electric Golf Cart Batteries :
Advanced Lithium-Ion Technology: The Golf Cart Lithium Battery utilizes advanced lithium-ion technology, specifically LiFePO4 chemistry, known for its high energy density, longevity, and safety features.
Intelligent Battery Management System (BMS): Each battery is equipped with a sophisticated BMS that monitors and protects the battery cells from overcharging, over-discharging, and excessive temperatures. This ensures safe and efficient operation.
Voltage Stability: The Golf Cart Lithium Battery maintains a stable voltage output throughout its discharge cycle, providing a consistent and reliable power supply to the golf cart's electrical system.
Compact Form Factor: The battery's compact size enables easy installation and integration into golf carts, optimizing space utilization without compromising performance.
High Efficiency: This lithium battery offers high energy efficiency, minimizing power wastage and maximizing the utilization of stored energy. It helps to extend the battery's range and operating time
Introducing Leadyo's High-Performance Lithium Electric Golf Cart Batteries - 48V 51.2V 150Ah, 150A, 7.68Kwh LiFePO4 Battery Pack For Golf Cart
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
Nominal Voltage | 51.2V | Terminal Type | M8 |
Nominal Capacity | 150Ah | Weight | 74kg |
Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 800*316*217mm |
Internal Resistance | ≤30 @50% SOC | Case Type | Metal case |
Capacity | @30A: 210minutes(3.5hours) | Cell type / Chemistry | LiFePO4 |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional |
Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | |
Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | |
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | ||
MAX Continuous Discharge Current | 200A | Max Charge Current | 200A |
Peak Current | 300A /10s | Recommended Charge Current | 20A - 50A |
Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V |
BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | ||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | |
Storage Temperature Range | -20~+45℃ | ||
Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 |
Lifepo4 golf cart battery with charger
Upgrade to LiFePO4 Batteries for Your Golf Cart and Experience the Difference
Upgrade your golf cart to LiFePO4 batteries and unlock the full potential of your vehicle. Experience the convenience of plug-and-play installation, enhanced power storage, lightweight design, and extended lifespan. Make the switch today and elevate your golfing experience to new heights.
