Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: AT12V020
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
20Ah |
Weight: |
4kg |
Dimension: |
Other Case |
Max Charge Current: |
50A |
Max Discharge Current: |
100A |
CCA: |
600CCA |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
20Ah |
Weight: |
4kg |
Dimension: |
Other Case |
Max Charge Current: |
50A |
Max Discharge Current: |
100A |
CCA: |
600CCA |

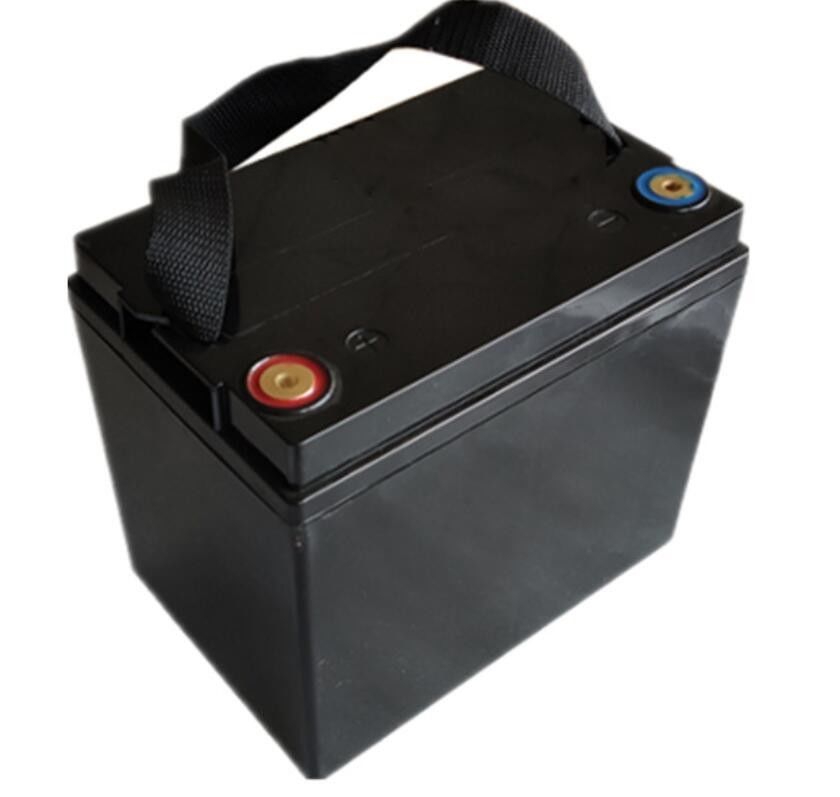

lithium trolling motor batteries 12V 12.8V 20Ah 400CCA lithium batteries for trolling motors
Features of Lifepo4 starter battery 12V 20Ah 600A trolling motor battery
Specifications of Lifepo4 starter battery 12V 20Ah 40A trolling motor battery
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
| Nominal Voltage | 12.8V | Terminal Type | round bolt |
| Nominal Capacity | 20Ah | Weight | 4kg |
| Nominal Energy | 256Wh | Case Dimension(L*W*H) | other size |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS |
| Capacity | @20A: 180minutes(3hours) | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | |
| Maximum In Parallel | No | Over current,short-circuit protection .etc | |
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | ||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A |
| CCA | 400A | Recommended Charge Current | 20A - 50A |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.6V |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | ||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | |
| Storage Temperature Range | -20～+45℃ | ||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 |
| Battery High Temperature Protection | 60℃ | ||
FAQ
Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest up to 48V.
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
