Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,COO
Model Number: LP12V135
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-25 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
135Ah |
Weight: |
16kg |
Dimension: |
L355xW175xH188mm |
Continous Current: |
150A |
Balance Current: |
5.5A |
Case: |
IP66 Screwable ABS Case |
Version: |
Bluetooth |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
135Ah |
Weight: |
16kg |
Dimension: |
L355xW175xH188mm |
Continous Current: |
150A |
Balance Current: |
5.5A |
Case: |
IP66 Screwable ABS Case |
Version: |
Bluetooth |

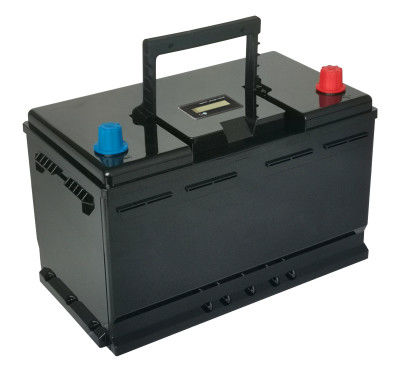

12V lithium Iron rechargeable 12.8V 135Ah 1000CCA Lifepo4 Starter batteries
Our Advantages:
We are one stop solution manufacturer,we use our self-developed custom -made BMS ,Our BMS Technology (powered by Texas structure US or Seiko Japan) is designed for our battery. Together with our class a batteries (China Leading brand Cells ),Most customers choose our battery packs because our internal process is perfect, humanized, safe and our Advanced BMS system.we ensure that you have a good quality and competitive price.
Specs Of the 12v lithium ion rechargeable battery
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | Car Terminals | |
| Nominal Capacity | 135Ah | Weight | 16kg | |
| Nominal Energy | 1728Wh | Case Dimension(L*W*H) | L355xW175xH188mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS+ Screwable design | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 1200A | Recommended Charge Current | 20A - 100A | |
| Discharge pulse current | 1200±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
