| Brand Name: | LEADYO |
| Model Number: | LP72V150 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Leadyo's 36V , 48V & 72V Lithium golf cart battery are standard replacements for golf carts with lead acid batteries.
Upgrade your golf cart from AGM batteries to LiFePO4 batteries - the perfect drop-in replacement solution!

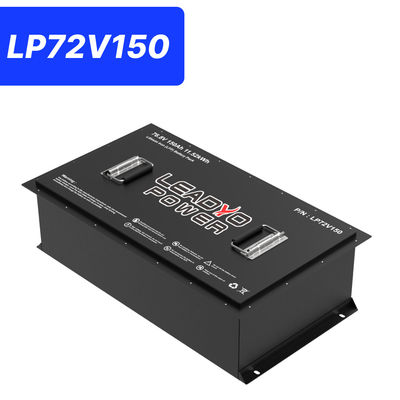

Introducing Leadyo's High-Performance Lithium Golf Cart Deep Cycle Batteries - 72V 150Ah, 250A, 11.520Kwh LiFePO4 Battery Pack For Golf Cart
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 72V | Terminal Type | M8 | |
| Nominal Capacity | 150Ah | Weight | 85kg | |

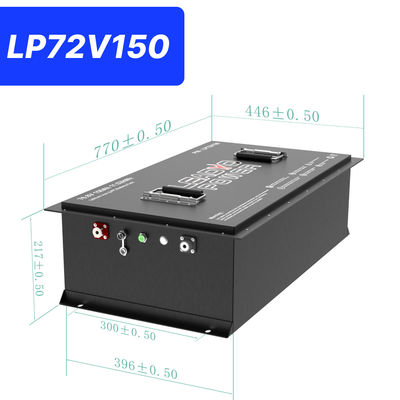

| Nominal Energy | 11520Wh | Case Dimension(L*W*H) | 770*446*217mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Stainless Steel Metal case |
|
| Capacity | @30A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 cells | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 250A | Max Charge Current | 100A | |
| Peak Current | 520A /20s | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 87.6V±0.2V | |
| BMS Low Voltge Cut-off | 48V | End of discharge voltage | 48V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |

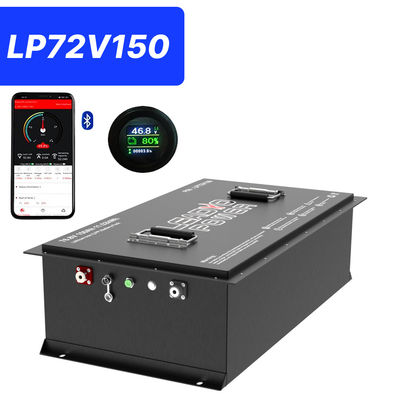

We provide whole sit for optional from battery pack (including BLE and LCD display) + charger + 12v reducer and mounting brackets
FAQ
1. Are you factory or trade company?
As a reputable and innovative battery manufacturer in China, we take pride in being a high-tech enterprise focused on research and development, as well as marketing of lithium rechargeable battery products. Our extensive range of lithium battery products finds applications in various industries, including:Marine, RV, and Camping,AGV and Golf Carts,Electric Motorcycles,Solar Energy Storage Systems,Electric Vehicles,UPS Backup,Telecom Towers,Medical Equipment.etc
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•NMC/LFP/LTO cells
3.When you delivery order and MOQ?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
NO MOQ .
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
|
|
