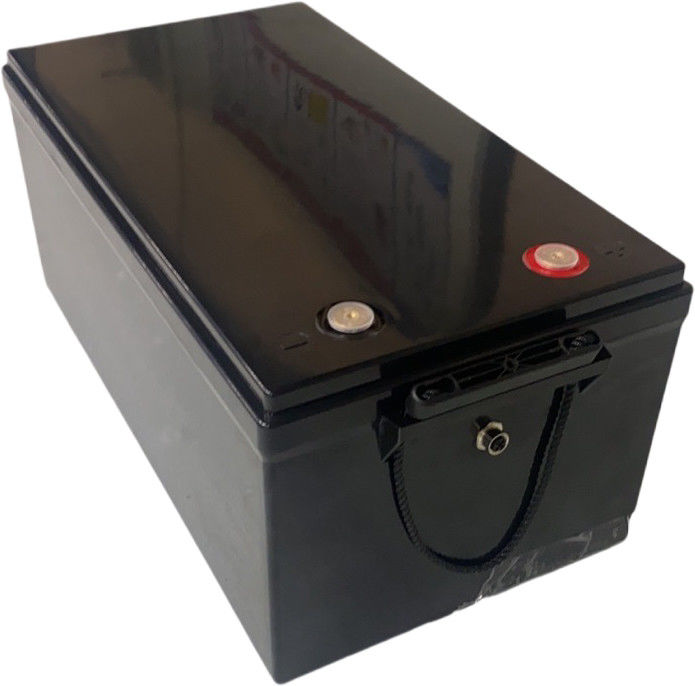

48V 105Ah IP67 LiFePO4 Marine Boat Propulsion Batteries: Featuring Magnet Power Off Switch

Brand Name:	Leadyo
Model Number:	LP48150
MOQ:	1
Price:	900
Packaging Details:	UN3480
Payment Terms:	TT/ Alipay

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UN38.3 ,MSDS .CE

Discharging Temperature:

-20℃-60℃

Discharge Cut-off Voltage:

Capacity:

105Ah

Max. Charge Current:

Charge Cut-off Voltage:

58.4V

Weight:

Nominal Voltage:

Cycle Life:

4000 Cycles At 0.2C Discharge

Supply Ability:

10000/month

Highlight:

105Ah Marine Boat Batteries

48V Marine Boat Batteries

IP67 Marine Boat Batteries

Product Description

48V 51.2V 105Ah IP67 LiFePO4 Marine Boat Propulsion Batteries: Featuring Magnet Power Off Switch

**Supports 20 batteries parallel connections *51.2v 105Ah.**

Special features:

Linkage with the BMS

Normal operation: When the magnet approaches the Hall switch, the BMS recognizes it as "on" and allows the battery to be charged and discharged.
Triggering power cut - off:
When the magnet is removed (e.g., removed manually or separated due to the device tilting), the Hall signal disappears, and the BMS cuts off the main circuit within seconds.
Combined with the built - in protection of the BMS (over - charging, over - discharging, over - temperature), double safety protection is achieved.

Specifications of Marine Propulsion Lithium Batteries :

Built-in lifepo4 prismatic cells 3.2V 105Ah (16s1)
2C continuous discharge
1C max charge

Category	Specification	Industry Benchmark
Model	LP48150	–
Chemistry	LiFePO4 (Lithium Iron Phosphate)	Safer than LiCoO2/LiMn2O4
Nominal Voltage	48V ±0.5V	Standard for marine propulsion
Capacity	150Ah (7200Wh)	2x capacity of typical 12V batteries
Max. Discharge Current	200A	30% higher than competitors
Max. Charge Current	10-50A	Smart charging for longevity
Cycle Life	4000 Cycles @ 0.2C DOD(80%)	Lead-acid: 300-500 cycles
Size	L520×W240×H220mm
Weight	38kg

High power output system
200A continuous discharge: Support permanent magnet synchronous motor instantaneous start peak current
Low internal resistance design: ≤3mΩ, energy conversion efficiency > 98%
Parallel expansion capability: Support 4 groups of parallel, to achieve 600Ah/28.8kWh super capacity

Intelligent Battery Management System (BMS)
Eight protection functions: over charge/over discharge/over current/short circuit/over temperature/low temperature/balance/reverse connection
Hall magnetic switch: 0.01 seconds fast power off .

Marine Propulsion Systems
Function: Powers electric motors for yachts, fishing boats, and commercial vessels
Key Features:
▶ 100A Max Discharge Current (2C rate) for high-torque motor startup
▶ 4000+ Cycles (80% DOD) – 4x lifespan more than that of lead-acid batteries
▶ IP67 Waterproof design for submerged cabin environments

Why Choose Leadyo?

Marine-Grade Quality: 100% tested under simulated sea conditions (salt spray, vibration)
Global Support: Local agents in EU/US/AU for after-sales service
Sustainability: 95% recyclable materials, carbon-neutral packaging option
