Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V050
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12V/12.8V |
Nominal Capacity: |
50Ah |
Energy: |
640Wh |
Weight: |
6.8kg |
Dimension: |
197*166*168mm |
Max Charge Current: |
50A |
Peak Current: |
150A/3S |
Terminal: |
M6 |
Warranty: |
2-3 Years |
Nominal Voltage: |
12V/12.8V |
Nominal Capacity: |
50Ah |
Energy: |
640Wh |
Weight: |
6.8kg |
Dimension: |
197*166*168mm |
Max Charge Current: |
50A |
Peak Current: |
150A/3S |
Terminal: |
M6 |
Warranty: |
2-3 Years |

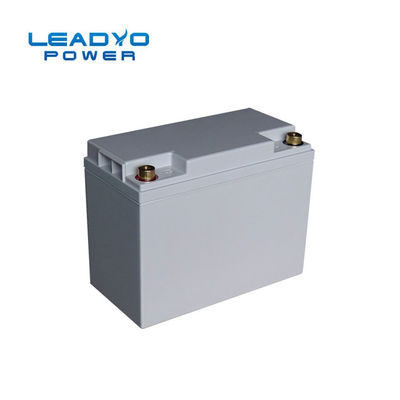

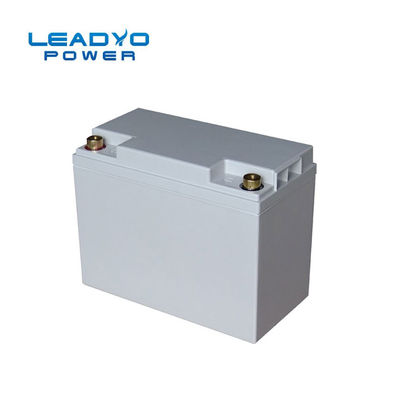

Leadyo Bluetooth battery 50amp hours 12V batteries for marine boat
1.We have customzied shell with screws sealed for 12V 50Ah 100Ah,120Ah,150Ah,200Ah 24V 50Ah 100Ah ,36V 50Ah and 48V 50Ah deep cycle battery ( Standard version, Bluetooth Version optional ) .
2.We are one-stop battery manufacturer ,We can provide different functions battery such as , low temperature cut off, Auto heating battery and cranking batteries.
3.Can customized your logo and labels on the batteries. Customized Bluetooth APP with your logo.
4.We can provide door to door services include taxes.(No need pay any thing when batteries arrive to your warehouse)
5.In order to better ensure the safety of product transportation, custom foam boxes. The foam box and the outer box are 100% safe for packaging products;
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 50Ah | Weight | 6.8kg | |
| Nominal Energy | 640Wh | Case Dimension(L*W*H) | 197*166*168mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 150A | Recommended Charge Current | 10A - 20A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 10 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
Q2: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q3. Is this product safe?
A3: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;
