Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V010
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
10Ah |
Weight: |
1.5kg |
Size: |
151*99*94mm |
Continuous Charge Current: |
10A |
Continuous Discharge Current: |
10A |
Case: |
ABS |
Terminal: |
F2 |
Warranty: |
3-3 Years |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
10Ah |
Weight: |
1.5kg |
Size: |
151*99*94mm |
Continuous Charge Current: |
10A |
Continuous Discharge Current: |
10A |
Case: |
ABS |
Terminal: |
F2 |
Warranty: |
3-3 Years |

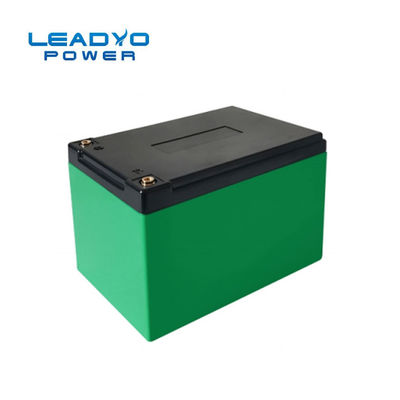

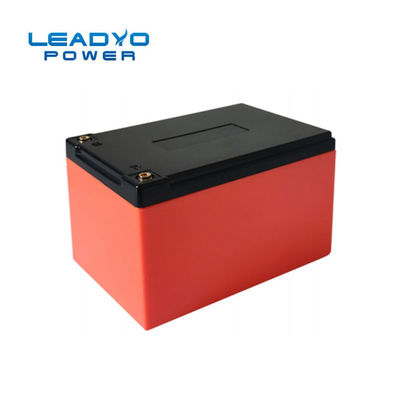

Leadyo lifepo4 12v 10ah lifepo4 lithium iron phosphate battery packs
This 12 volt lithium battery packs with Lithium Iron Phosphate (LiFePO4) technology this battery has twice the power, half the weight, and lasts 4 times longer than a sealed lead acid battery – providing exceptional lifetime value. The battery for fishing electronics, outdoor use, and SLA replacement. Replaces 12.8V battery and many more. LiFePO4 charger recommended.
Application:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | F2 | |
| Nominal Capacity | 10Ah | Weight | 1.5kg | |
| Nominal Energy | 128Wh | Case Dimension(L*W*H) | 151*99*94mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @2A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 10A | Max Charge Current | 10A | |
| Peak Current | 20A | Recommended Charge Current | 2A - 5A | |
| Discharge pulse current | 30±5A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
