Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP48V060 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 51.2V | Nominal Capacity: | 60Ah |
---|---|---|---|
Weight: | 30kg | Dimension: | Customized |
Continuous Current: | 60A | Peak Current: | 150A |
Case: | Metal Case | Terminal: | M8 And Anderson Connector |
Cycles: | Over 5000 Times | ||
High Light: | 48V Custom Lithium Battery,Custom Lithium Battery 60Ah,UN38.3 48V Lifepo4 Battery Pack |

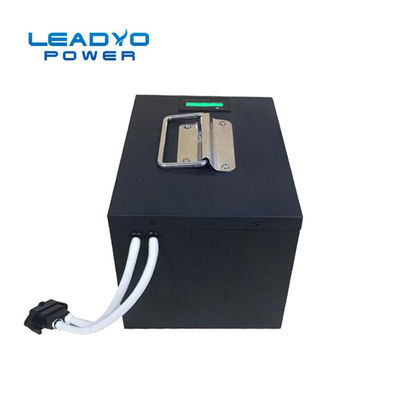

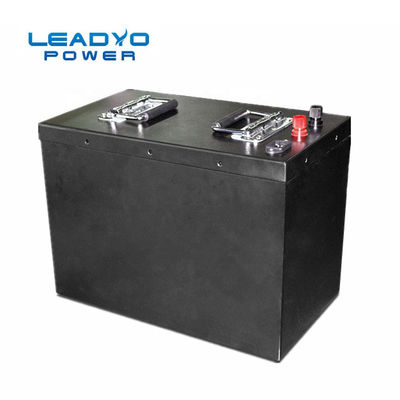

48v lifepo4 battery Customized lithium lifepo4 battery packs 48V60Ah
Features of Forklift Lifepo4 lithium iron LFP battery
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 51.2V | Terminal Type | M8 | |
Nominal Capacity | 600Ah | Weight | 30kg | |
Nominal Energy | 3072Wh | Case Dimension(L*W*H) | customized | |
Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | No | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 60A | Max Charge Current | 60A | |
Peak Current | 150A | Recommended Charge Current | 14A - 30A | |
Discharge pulse current | 200±30A (31±10ms) | End of Charge voltage | 57.6V | |
BMS Low Voltge Cut-off | 40V (2.0V±0.05v) pc) | Balancing current | Auto start | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 & BIS for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
