Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V050
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
50Ah |
Weight: |
6.5kg |
Dimension: |
Customized |
Continuous Current: |
20A |
Peak Current: |
50A |
Case: |
ABS/Metal Case/PVC |
Terminal: |
M8 And Anderson Connector |
Cycles: |
Over 5000 Times |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
50Ah |
Weight: |
6.5kg |
Dimension: |
Customized |
Continuous Current: |
20A |
Peak Current: |
50A |
Case: |
ABS/Metal Case/PVC |
Terminal: |
M8 And Anderson Connector |
Cycles: |
Over 5000 Times |

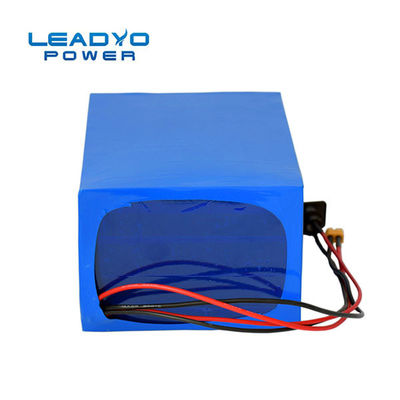

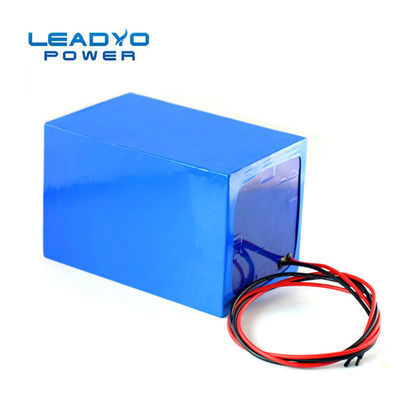

Customized LiFePO4 12 Volt Battery Lithium Ion 12.8V 50A H LiFePO4 Battery Pack
Features of 12V 50Ah Lifepo4 lithium iron LFP battery
Specification of 12.8V 12 volt 50Ah Lithium LiFePO4 Battery Pack with BMS
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
| Nominal Voltage | 12.8V | Output Connector | Anderson +DC |
| Nominal Capacity | 50Ah | Weight | 6.5kg |
| Nominal Energy | 640Wh | Case Dimension(L*W*H) | customized |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case |
| Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional |
| Maximum In Series | No | BMS:low voltage,high voltage,over temperature, | |
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | |
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | ||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A |
| Peak Current | 100A | Recommended Charge Current | 10A - 25A |
| Discharge pulse current | 70±10A (31±10ms) | End of Charge voltage | 14.4V |
| BMS Low Voltge Cut-off | 8V | Balancing current | Auto start |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | ||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | |
| Storage Temperature Range | -20～+45℃ | ||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 |
| Battery High Temperature Protection | 60℃ | ||
PVC Packaging Custom 12V 50Ah LiFePO4 Battery Pack
FAQ
More Applicaitions for 12V Lithium ion LiFePO4 Battery Packs:
Security and fire systems, medical devices, emergency lighting, and UPS systems
RVs, marine, campers, electric scooters, golf carts, power wheels, trolling motors, tool trailers, backup power supply, solar, and off-grid
Fishfinders, trolling motors, camping, and other outdoor applications
All-terrain vehicles (ATVs and UTVs), ATV, UTV, and portable electric winches
Generating electricity and powering up buildings
Cellphones, power tools, digital cameras, laptops, children's toys, e-cigarettes, small and large appliances, tablets, and e-readers Grid-scale energy storage and military and aerospace application
