| Brand Name: | LEADYO |
| Model Number: | LP12V100 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

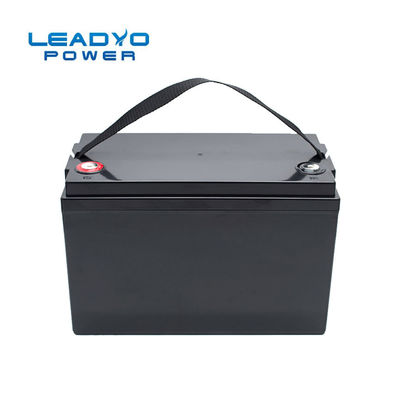

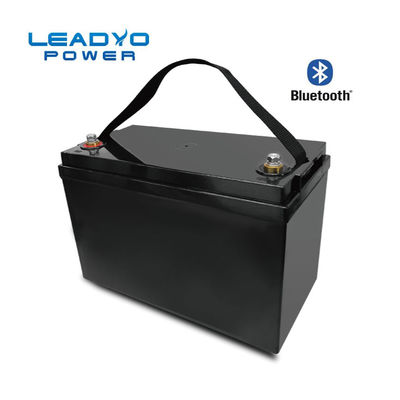

Rechargeable Battery 12V 100Ah 12.8V LiFePO4 Lithium Ion LiFePO4 Battery Packs
12.8V100Ah LiFePO4 Battery
This 12.8V 100Ah LFP battery can be perfect substitution to AGM/GEL battery, PKE also provides customized batteries with different capacity, dimension and functions according to customer's specific requirements.
Comparing with AGM/GEL lead acid batteries, PKE Li-ion (LiFePO4) substitution solutions has the following advantages:
1. Long life: LiFePO4 battery has a long life cycle which is more than 5000 times and its life span is up to 10 years.
2. Light in weight: Li-ion (LiFePO4) substitution battery is only approx. 1/3 of lead acid battery in weight.
3. Deep discharge: the power supplied by LiFePO4 is 25% higher than the power supplied by AGM/GEL lead acid battery with same capacity.
4. Wide working temperature: LiFePO4 battery has wide working temperature range of -20°C ~ 60°C.
5. Environmental friendly: LiFePO4 does not contain any harmful heavy metal elements, it is green, non-toxic, pollution-free.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 13kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @24A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current |
300A |
Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1.We have our own factory with professional lithium ion battery pack for over 15 years.
2. We have a strong R&D team.
3. Offering competitive price, good after-sales service.
4. OEM Manufacturing welcome: Product, Package...
5. Sample order
6. We will reply you for your inquiry in 24 hours.
|
