Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,IEC62133
Model Number: LP02S04
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
6.4V |
Nominal Capacity: |
4Ah |
Weight: |
180g |
Dimension: |
Customized |
Max Charge Current: |
5A |
Max Discharge Current: |
5A |
Case: |
ABS/PVC/Epoxy |
Terminal: |
Anderson Etc |
Size: |
L73*W55*30MM |
Nominal Voltage: |
6.4V |
Nominal Capacity: |
4Ah |
Weight: |
180g |
Dimension: |
Customized |
Max Charge Current: |
5A |
Max Discharge Current: |
5A |
Case: |
ABS/PVC/Epoxy |
Terminal: |
Anderson Etc |
Size: |
L73*W55*30MM |
3.2V 3.7V 6.4V 7.4V 3Ah 4Ah 5Ah 6Ah Custom Lithium battery packs
Features of Custom Lithium battery
Custom battery Solutions from Design to Delivery for Over 15 Years.
Leadyo has been designing and assembling custom battery solutions. From medical devices, and solar power system to emergency lighting systems and many ESS applications, we can design and manufacture the perfect battery power solution for your needs.
We are industry leaders in the engineering and manufacturing of custom battery systems, with a focus on lithium battery packs. Our battery pack energy solutions optimize performance, size, working life, and cost, giving our customers a unique competitive edge.
Please feel free to contact with us if you have any Battery projects, our engineer will provide best battery solution to you.
Specs of Custom Lithium battery
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage |
6.4V |
Terminal Type | anderson or others | |
| Nominal Capacity | 4Ah | Weight | 180g | |
| Nominal Energy | 25.6Wh | Case Dimension(L*W*H) | Custom | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS/PVC | |
| Capacity | @0.8A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4/NMC | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 5A | Max Charge Current | 5A | |
| Peak Current | 10A | Recommended Charge Current | 1.5-3A | |
| Discharge pulse current | 15±2A (31±10ms) | End of Charge voltage | 7.3V | |
| BMS Low Voltge Cut-off | 4.6V | End of discharge voltage | 4.6V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | Custom | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

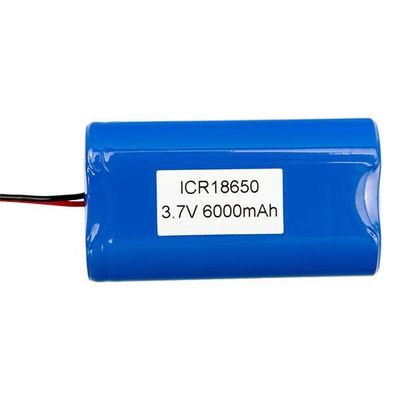

Pictures of Custom Lithium battery
FAQ of Custom Lithium battery
