Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,COO
Model Number: LP12V120
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 10-25 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12V |
Nominal Capacity: |
120Ah |
Weight: |
15kg |
Dimension: |
L355xW175xH188mm |
Continous Current: |
150A |
Balance Current: |
5.5A |
Terminals: |
Round-bolt Terminals |
Version: |
Bluetooth APP |
Nominal Voltage: |
12V |
Nominal Capacity: |
120Ah |
Weight: |
15kg |
Dimension: |
L355xW175xH188mm |
Continous Current: |
150A |
Balance Current: |
5.5A |
Terminals: |
Round-bolt Terminals |
Version: |
Bluetooth APP |
12V 100Ah 120Ah bluetooth App Lifepo4 LFP lithium iron battery for RV, caravan, camper ,marine.etc
Features of 12V 120Ah Lifepo4 LFP lithium iron battery :
-With Smart Bluetooth APP, can monitoring group batteries and single battery
-Continuous current can reach 200A;
-with the BMS balance current max 5.5A
-Series max up 4pcs, parallel no limit
-with Detachable casing
Specs Of lithium ion battery for solar energy storage
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | Car Terminals | |
| Nominal Capacity | 120Ah | Weight | 15kg | |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | L355xW175xH188mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS+ Screwable design | |
| Capacity | @24A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Bluetooth APP | |
| Maximum In Series and Parallel | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 20A - 100A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

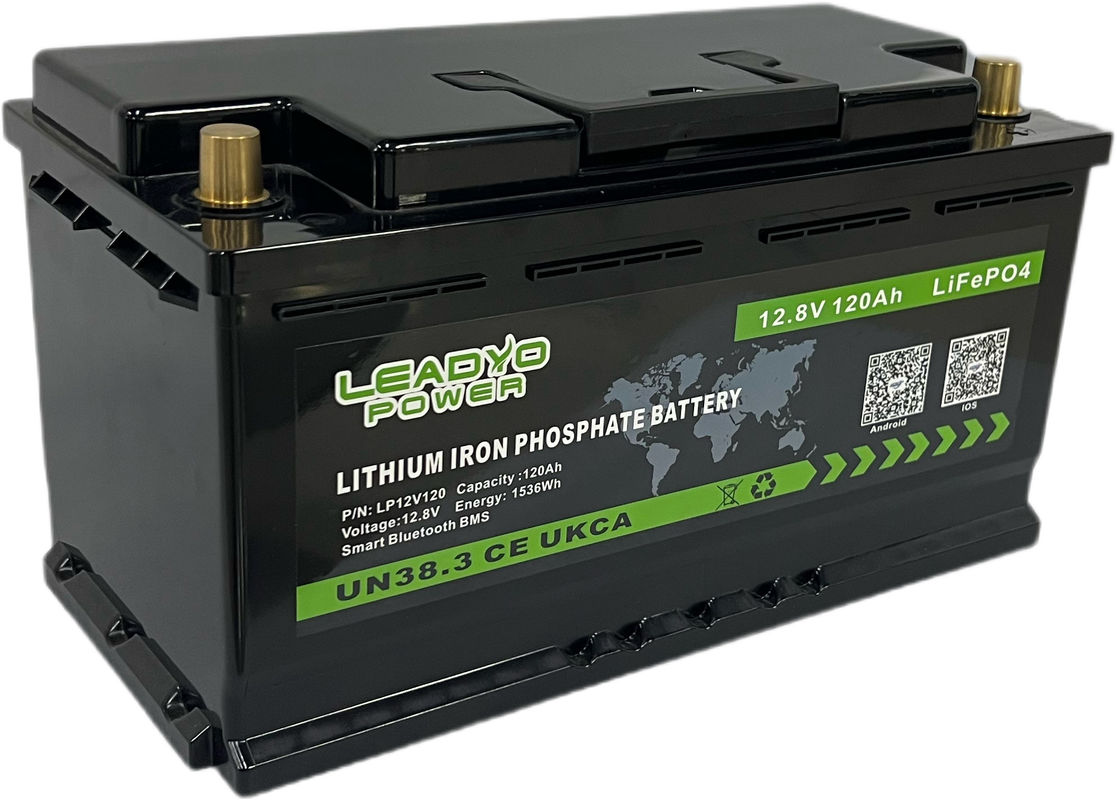

Pictures Of lithium ion battery for solar energy storage
Bluetooth APP Of lithium ion battery for solar energy storage
Applications Of lithium ion battery for solar energy storage
FAQ Of lithium ion battery for solar energy storage
